用遗传算法寻找迷宫出路
遗传算法是一种基于达尔文进化论的搜索启发式算法。该算法模拟了基于种群中最适合个体的自然选择。
遗传算法需要两个参数，即种群和适应度函数。根据适应度值在群体中选择最适合的个体。最健康的个体通过交叉和突变技术产生后代，创造一个新的、更好的种群。这个过程重复几代，直到得到最好的解决方案。
要解决的问题
本文的的路径规划基于论文Autonomous Robot Navigation Using Genetic Algorithm with an Efficient Genotype Structure。
本文的代码基于两个假设：
1、代理不能对角线移动，也就是说只能左右，上下移动，不能走斜线。
2、迷宫的地图是已知的，但是代理不知道。
基因型
在由 N 列建模的导航环境中，路径可以由具有 N 个基因的基因型表示。 每个基因都是一个代表检查点坐标的元组。
所以我们的基因型如下，列式结构：

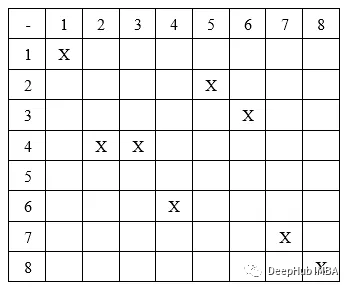

在列式结构中，我们假设每个基因都只放在一列中，例如，取一条大小为 8 的染色体，[(1,1), (4,2), (4,3), (6,4)， (2,5), (3,6), (7,7), (8,8)]。 它会像这样放置：
这里假设起始坐标是(1,1)，目标坐标是(8,8)
有两种方法可以从一个检查点移动到另一个检查点:
先排成一行移动 或 先排成一列移动

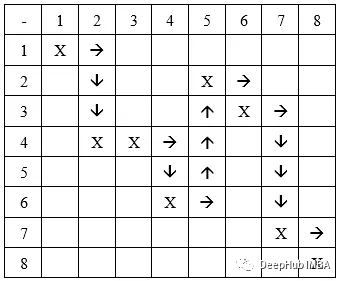

行移动：先在一行中移动，然后在列中移动。 如果我们从前面的例子中获取染色体，我们得到的路径是：
列移动：类似的，先在一列中移动，然后在一行中移动。 我们得到的路径是：
虽然这种基因型结构很好，但它不能为某些迷宫产生路径。 所以这种结构假定每个路径段都以连续的列结束。
实现遗传算法
本文使用python语言来实现遗传算法，并在最后有完整代码链接。
1、导入模块
这里的一个没见过的模块是pyamaze，它主要是python中生成迷宫。
fromrandomimportrandint, random, choicefrompyamazeimportmaze, agentfromcopyimportdeepcopy, copyimportcsv
2、定义常量和一些初始化

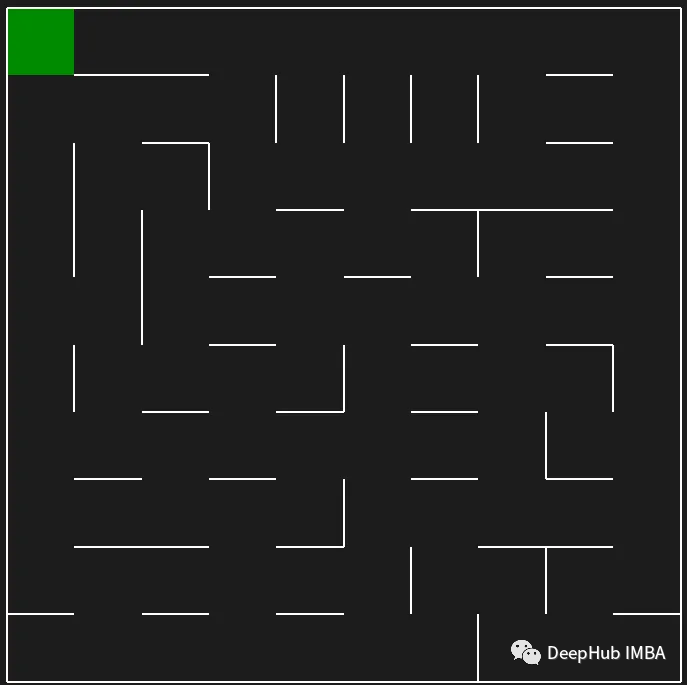

设置程序的不同参数并创建一个迷宫。
#initialize constantsPOPULATIONSIZE=120ROWS, COLS=16,8#Set the mutation rate MUTATION_RATE=100# start and end points of the mazeSTART, END=1, COLS#weights of path length, infeasible steps and number of turnswl, ws, wt=2, 3, 2#file name for storing fitness parametersfile_name='data.csv'#initilize a maze object and create a maze m=maze(ROWS, COLS)m.CreateMaze(loopPercent=100)maps=m.maze_map
3、种群的创建
此函数创建种群并为每个个体随机生成方向属性。
defpopFiller(pop, direction):"""Takes in population and direction lists and fills them with random values within the range."""foriinrange(POPULATIONSIZE):# Generate a random path and add it to the population listpop.append([(randint(1, ROWS), j) forjinrange(1, COLS+1)])# Set the start and end points of the pathpop[i][0] = (START, START)pop[i][-1] = (ROWS, END)# Generate a random direction and add it to the direction listdirection.append(choice(["r", "c"]))returnpop, direction
4、路径计算
这一步使用了两个函数：inter_steps函数以两个坐标作为元组，例如(x, y)和方向信息来生成这些点之间的中间步数。path函数使用inter_steps函数通过循环每个个体的基因来生成它的路径。
definter_steps(point1, point2, direction):"""Takes in two points and the direction of the path between them and returns the intermediate steps between them."""steps= []ifdirection=="c": # column firstifpoint1[0] <point2[0]: steps.extend([(i, point1[1]) foriinrange(point1[0] +1, point2[0] +1)])elifpoint1[0] >point2[0]:steps.extend([(i, point1[1]) foriinrange(point1[0] -1, point2[0] -1, -1)])steps.append(point2)elifdirection=="r": # row firstifpoint1[0] <point2[0]: steps.extend([(i, point1[1] +1) foriinrange(point1[0], point2[0] +1)])elifpoint1[0] >point2[0]:steps.extend([(i, point1[1] +1) foriinrange(point1[0], point2[0] -1, -1)])else:steps.append(point2)returnstepsdefpath(individual, direction):"""Takes in the population list and the direction list and returns the complete path using the inter_steps function."""complete_path= [individual[0]]foriinrange(len(individual) -1):# Get the intermediate steps between the current and the next point in the populationcomplete_path.extend(inter_steps(individual[i], individual[i+1], direction))returncomplete_path
5、适应度评估

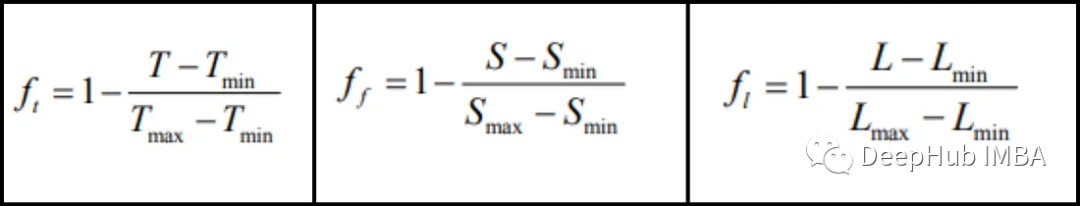

这个步骤使用两个函数来计算个体的适应度：pathParameters函数计算个体转弯次数和不可行步数，fitCal函数利用这些信息计算每个个体的适应度。 适应度计算的公式如下：
这些公式分别归一化了转身、不可行步长和路径长度的适应度。整体适应度计算公式如下所示:
wf, wl, wt是定义参数权重的常数，分别是不可行的步数，路径长度和转弯次数。这些常量之前已经初始化。
fitCal函数有一个额外的关键字参数，即createCSV，它用于将不同的参数写入CSV文件。
defpathParameters(individual, complete_path, map_data):"""Takes in an individual, it's complete path and the map dataand returns the number of turns and the number of infeasible steps."""# Count the number of turns in the individual's pathturns=sum(1foriinrange(len(individual) -1)ifindividual[i][0] !=individual[i+1][0])# Count the number of Infeasible steps in the individual's pathinfeas=sum(any((map_data[complete_path[i]]["E"] ==0andcomplete_path[i][1] ==complete_path[i+1][1] -1,map_data[complete_path[i]]["W"] ==0andcomplete_path[i][1] ==complete_path[i+1][1] +1,map_data[complete_path[i]]["S"] ==0andcomplete_path[i][0] ==complete_path[i+1][0] -1,map_data[complete_path[i]]["N"] ==0andcomplete_path[i][0] ==complete_path[i+1][0] +1,))foriinrange(len(complete_path) -1))returnturns, infeasdeffitCal(population, direction, solutions,createCSV=True):"""Takes in the population list and the direction list andreturns the fitness list of the population and the solution found(infeasible steps equal to zero).Args:- population (list): a list of individuals in the population- direction (list): a list of the direction for each individual- solutions (list): a list of the solutions found so far- createCSV (bool): a flag indicating whether to create a CSV file or not (default: True)"""# Initialize empty lists for turns, infeasible steps, and path lengthturns= []infeas_steps= []length= []# A function for calculating the normalized fitness valuedefcalc(curr, maxi, mini):ifmaxi==mini:return0else:return1- ((curr-mini) / (maxi-mini))# Iterate over each individual in the populationfori, individualinenumerate(population):# Generate the complete path of individual p=path(individual, direction[i])# Calculate the number of turns and infeasible steps in the individual's patht, s=pathParameters(individual, p, maps)# If the individual has zero infeasible steps, add it to the solutions listifs==0:solutions.append([deepcopy(individual), copy(direction[i])])# Add the individual's number of turns, infeasible steps, and path length to their respective liststurns.append(t)infeas_steps.append(s)length.append(len(p))# Calculate the maximum and minimum values for turns, infeasible steps, and path lengthmax_t, min_t=max(turns), min(turns)max_s, min_s=max(infeas_steps), min(infeas_steps)max_l, min_l=max(length), min(length)# Calculate the normalized fitness values for turns, infeasible steps, and path lengthfs= [calc(infeas_steps[i], max_s, min_s) foriinrange(len(population))]fl= [calc(length[i],max_l, min_l) foriinrange(len(population))]ft= [calc(turns[i], max_t, min_t) foriinrange(len(population))]# Calculate the fitness scores for each individual in the populationfitness= [(100*ws*fs[i]) * ((wl*fl[i] +wt*ft[i]) / (wl+wt))foriinrange(POPULATIONSIZE)]# If createCSV flag is True, write the parameters of fitness to a CSV fileifcreateCSV:withopen(file_name, 'a+', newline='') asf:writer=csv.DictWriter(f, fieldnames=['Path Length', 'Turns', 'Infeasible Steps', 'Fitness'])writer.writerow({'Path Length': min_l, 'Turns': min_t, 'Infeasible Steps': min_s, 'Fitness': max(fitness)})returnfitness, solutions
6、选择
这个函数根据适应度值对总体进行排序。
defrankSel(population, fitness, direction):"""Takes in the population, fitness and direction lists and returns the population and direction lists after rank selection."""# Pair each fitness value with its corresponding individual and directionpairs=zip(fitness, population, direction)# Sort pairs in descending order based on fitness valuesorted_pair=sorted(pairs, key=lambdax: x[0], reverse=True)# Unzip the sorted pairs into separate lists_, population, direction=zip(*sorted_pair)returnlist(population), list(direction)
7、交叉
这个函数实现了单点交叉。它随机选择一个交叉点，并使用种群人口的前一半(父母)来创建后一半，具体方法如下图所示：
defcrossover(population, direction):""" Takes in the population and direction lists and returns the population and direction lists after single point crossover."""# Choose a random crossover point between the second and second-to-last genecrossover_point=randint(2, len(population[0]) -2)# Calculate the number of parents to mate (half the population size)no_of_parents=POPULATIONSIZE//2foriinrange(no_of_parents-1):# Create offspring by combining the genes of two parents up to the crossover pointpopulation[i+no_of_parents] = (population[i][:crossover_point] +population[i+1][crossover_point:])# Choose a random direction for the offspringdirection[i+no_of_parents] =choice(["r", "c"])returnpopulation, direction
8、变异

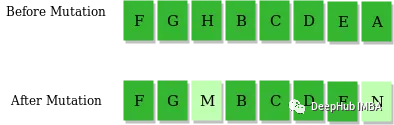

通过将基因(即tuple (x, y))的x值更改为范围内的任意数字来实现插入突变。元组的y值保持不变，因为我们假设迷宫中的每一列都应该只有一个检查点。
有几个参数可以调整，mutation_rate和no_of_genes_to_mutate。
defmutation(population, mutation_rate, direction, no_of_genes_to_mutate=1):"""Takes in the population, mutation rate, direction and number of genes to mutateand returns the population and direction lists after mutation."""# Validate the number of genes to mutateifno_of_genes_to_mutate<=0:raiseValueError("Number of genes to mutate must be greater than 0")ifno_of_genes_to_mutate>COLS:raiseValueError("Number of genes to mutate must not be greater than number of columns")foriinrange(POPULATIONSIZE):# Check if the individual will be mutated based on the mutation rateifrandom() <mutation_rate:for_inrange(no_of_genes_to_mutate):# Choose a random gene to mutate and replace it with a new random geneindex=randint(1, COLS-2)population[i][index] = (randint(1, ROWS), population[i][index][1])# Choose a random direction for the mutated individualdirection[i] =choice(["r", "c"])returnpopulation, direction
9、最佳解
该函数根据解的路径长度返回最佳解。
defbest_solution(solutions):"""Takes a list of solutions and returns the best individual(list) and direction"""# Initialize the best individual and direction as the first solution in the listbest_individual, best_direction=solutions[0]# Calculate the length of the path for the best solutionmin_length=len(path(best_individual, best_direction))forindividual, directioninsolutions[1:]:# Calculate the length of the path for the best solutioncurrent_length=len(path(individual, direction))# If the current solution is better than the best solution, update the best solutionifcurrent_length<min_length:min_length=current_lengthbest_individual=individualbest_direction=directionreturnbest_individual, best_direction
10、整合
整个算法的工作流程就像我们开头显示的流程图一样，下面是代码：
defmain():# Initialize population, direction, and solution listspop, direc, sol= [], [], []# Set the generation count and the maximum number of generationsgen, maxGen=0, 2000# Set the number of solutions to be foundsol_count=1# Set the number of solutions to be foundpop, direc=popFiller(pop, direc)# Create a new CSV file and write headerwithopen(file_name, 'w', newline='') asf:writer=csv.DictWriter(f, fieldnames=['Path Length', 'Turns', 'Infeasible Steps', 'Fitness'])writer.writeheader()# Start the loop for the genetic algorithmprint('Running...')whileTrue:gen+=1# Calculate the fitness values for the population and identify any solutionsfitness, sol=fitCal(pop, direc, sol, createCSV=True)# Select the parents for the next generation using rank selectionpop, direc=rankSel(pop, fitness, direc)# Create the offspring for the next generation using crossoverpop, direc=crossover(pop, direc)# mutate the offsprings using mutation functionpop, direc=mutation(pop, MUTATION_RATE, direc, no_of_genes_to_mutate=1)# Check if the required number of solutions have been foundiflen(sol) ==sol_count:print("Solution found!")break# Check if the maximum number of generations have been reachedifgen>=maxGen:print("Solution not found!")flag=input("Do you want to create another population(y/n): ")# if flag is 'y', clear the population and direction lists and refill themifflag=='y':pop, direc= [], []pop, direc=popFiller(pop, direc)gen=0continue# If flag is 'n' exit the programelse:print("Good Bye")returnNone# Find the best solution and its directionsolIndiv, solDir=best_solution(sol)# Generate the final solution path and reverse itsolPath=path(solIndiv, solDir)solPath.reverse()# Create an agent, set its properties, and trace its path through the mazea=agent(m, shape="square", filled=False, footprints=True)m.tracePath({a: solPath}, delay=100)m.run()if__name__=="__main__":# Call the main functionmain()
可视化和结果展示
最后为了能看到算法的过程，可以可视化不同参数随代数的变化趋势，使用matplotlib和pandas绘制曲线。

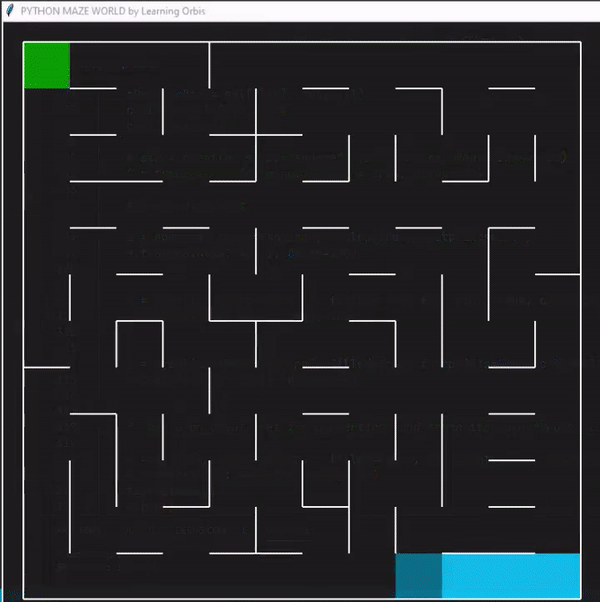

下面是一个使用“loopPercent = 100”的15 * 15迷宫的结果:

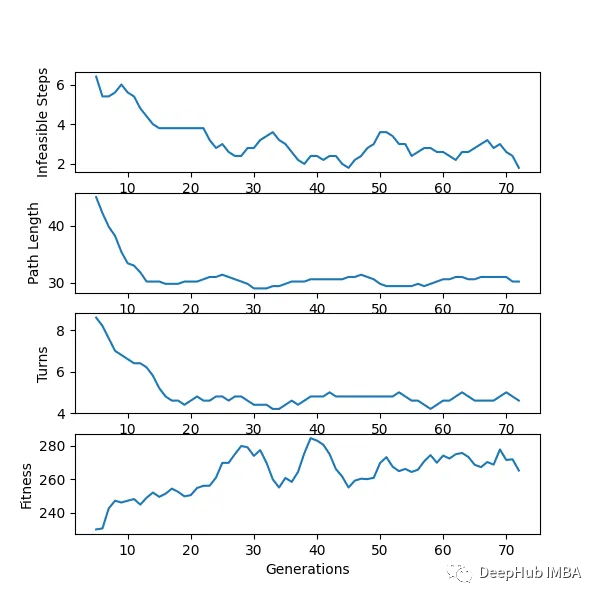

我们可以对他进行一些简单的分析：下图是我结果中得到的趋势线。“不可行的步数”显著减少，“路径长度”和“转弯数”也显著减少。经过几代之后，路径长度和转弯数变得稳定，表明算法已经收敛到一个解决方案。
适应度曲线不一致的可能原因:
当一个个体在种群中的适应度最大时，不意味着它就是解决方案。但它继续产生越来越多的可能解，如果一个群体包含相似的个体，整体的适合度会降低。

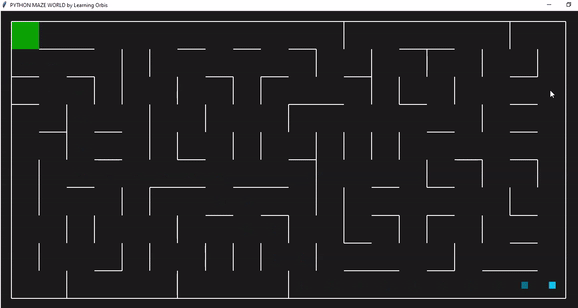

下面一个是是使用“loopPercent = 100”的10 * 20迷宫的结果:
趋势线与之前的迷宫相似：

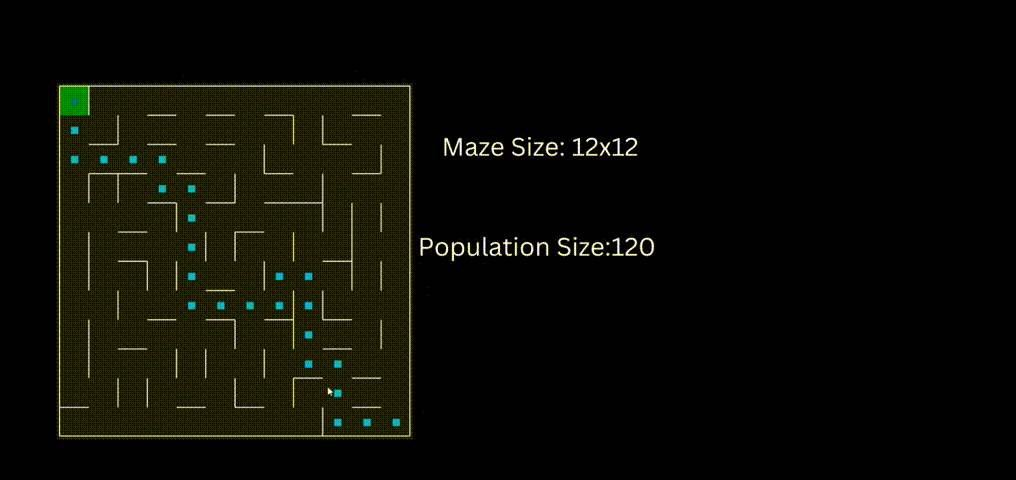

使用“loopPercent = 100”的12 × 12迷宫的结果:
程序运行后找到的三个解决方案，并从中选择最佳解决方案。红色的是最佳方案。最佳解决方案是根据路径长度等标准选择的。与其他解决方案相比，红色代理能够找到通过迷宫的有效路径。这些结果证明了该方案的有效性。
一些数据指标的对比

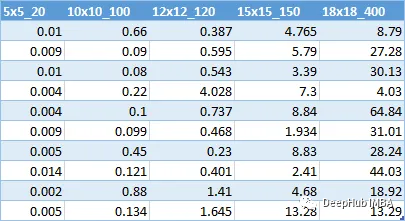

计算了10个不同大小的迷宫的解决方案所需时间的数据。

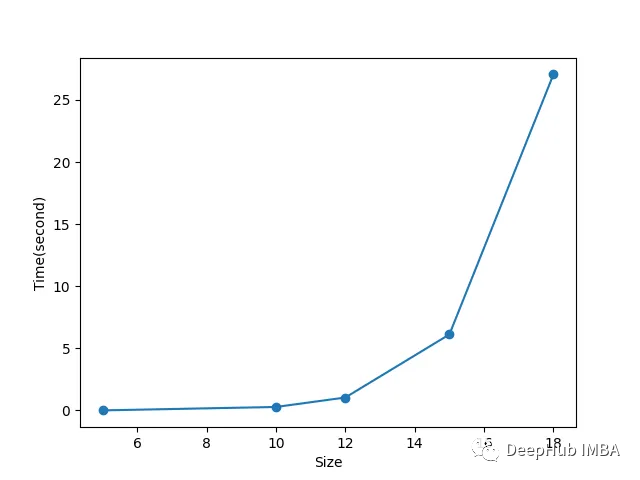

随着迷宫规模的增加，时间几乎呈指数增长。这意味着用这种算法解决更大的迷宫是很有挑战性的。
这是肯定的：
因为遗传算法是模拟的自然选择，有一定的随机性，所以计算量很大，特别是对于大而复杂的问题。我们选择的实现方法也适合于小型和简单的迷宫，基因型结构不适合大型和复杂的迷宫。迷宫的结果也取决于初始总体，如果初始总体是好的，它会更快地收敛到解决方案，否则就有可能陷入局部最优。遗传算法也不能找到最优解。
总结
本文我们成功地构建并测试了一个解决迷宫的遗传算法实现。对结果的分析表明，该算法能够在合理的时间内找到最优解，但随着迷宫大小的增加或loopPercent的减少，这种实现就会变得困难。参数POPULATION_SIZE和mutation_rate，对算法的性能有重大影响。本文只是对遗传算法原理的一个讲解，可以帮助你了解遗传算法的原理，对于小型数据可以实验，但是在大型数据的生产环境，请先进行优化。
论文地址：
https://avoid.overfit.cn/post/db9f6af37de141c99d0a054ff767dc71
作者：Dayan Hafeez
