交换机的三层交换使用

三层交换意思就是让不同的vlan通信；隔离故障的同时实现正常通信。

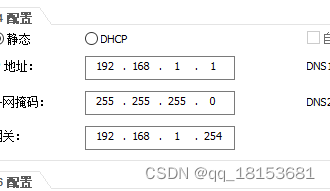

PC1—IP配值

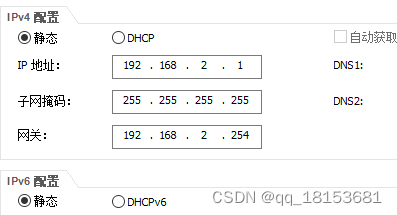

PC2—IP配值

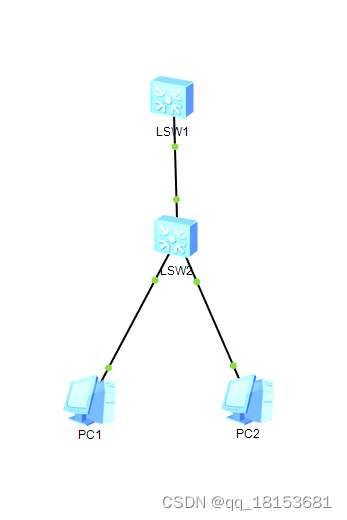

在交换机2中创建vlan10 和 vlan 20 并将PC1加入vlan10(g0/0/1),PC2加入vlan20(g0/0/2)；
交换机2的g0/0/3端口和交换机1的g0/0/1端口各设置为trunk；

Huawei]vlan 10
[Huawei-vlan10]q
[Huawei]vlan 20
[Huawei-vlan20]q
[Huawei]int g0/0/1
[Huawei-GigabitEthernet0/0/1]port link-type access
[Huawei-GigabitEthernet0/0/1]port default vlan 10
[Huawei-GigabitEthernet0/0/1]q
[Huawei]int g0/0/2
[Huawei-GigabitEthernet0/0/2]port link-type access
[Huawei-GigabitEthernet0/0/2]port default vlan 20
[Huawei-GigabitEthernet0/0/2]dis vlan
The total number of vlans is : 3
--------------------------------------------------------------------------------
U: Up;         D: Down;         TG: Tagged;         UT: Untagged;
MP: Vlan-mapping;               ST: Vlan-stacking;
#: ProtocolTransparent-vlan;    *: Management-vlan;
--------------------------------------------------------------------------------VID  Type    Ports
--------------------------------------------------------------------------------
1    common  UT:GE0/0/3(U)      GE0/0/4(D)      GE0/0/5(D)      GE0/0/6(D)      GE0/0/7(D)      GE0/0/8(D)      GE0/0/9(D)      GE0/0/10(D)     GE0/0/11(D)     GE0/0/12(D)     GE0/0/13(D)     GE0/0/14(D)     GE0/0/15(D)     GE0/0/16(D)     GE0/0/17(D)     GE0/0/18(D)     GE0/0/19(D)     GE0/0/20(D)     GE0/0/21(D)     GE0/0/22(D)     GE0/0/23(D)     GE0/0/24(D)                                     10   common  UT:GE0/0/1(U)                                                      20   common  UT:GE0/0/2(U)                                                      VID  Status  Property      MAC-LRN Statistics Description
--------------------------------------------------------------------------------1    enable  default       enable  disable    VLAN 0001
10   enable  default       enable  disable    VLAN 0010
20   enable  default       enable  disable    VLAN 0020
[Huawei-GigabitEthernet0/0/2]q
[Huawei]int g0/0/3
[Huawei-GigabitEthernet0/0/3]port link-type trunk
[Huawei-GigabitEthernet0/0/3]port trunk allow-pass vlan all

交换机1的配置：

<Huawei>sy
Enter system view, return user view with Ctrl+Z.
[Huawei]vlan 10
[Huawei-vlan10]q
[Huawei]vlan 20
[Huawei-vlan20]q
[Huawei]int g0/0/1
[Huawei-GigabitEthernet0/0/1]port link-type trunk
[Huawei-GigabitEthernet0/0/1]port trunk allow-pass vlan all
[Huawei]
[Huawei-Vlanif10]interface vlan 10
[Huawei-Vlanif10]ip add 192.168.1.254 24  为vlan10配置ip,用来作为vlan10网络的网关
[Huawei]interface vlan 20
[Huawei-Vlanif20]ip add 192.168.2.254 24   为vlan20配置ip,用来作为vlan20网络的网关

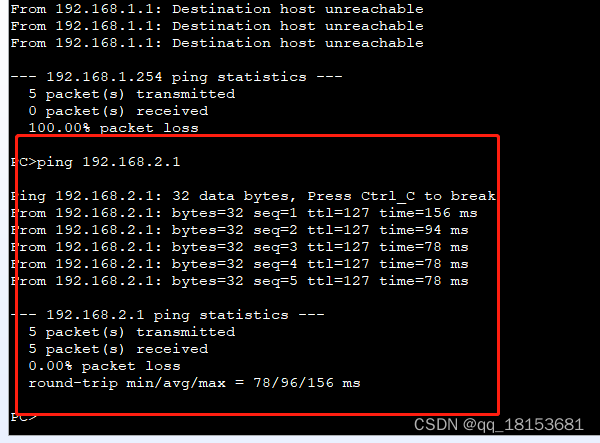

测试可以通信！
