Muduo库源码剖析(九)——TcpConnection类

TcpConnection类

要点

TcpConnection表示的是“一次TCP连接”，它是不可再生的，一旦连接断开，这个TcpConnection对象就没啥用了。它的主要功能就是对 成功连接服务器的客户连接connfd 的封装。

一个TcpConnection 唯一对应一个Channel和Socket

Channel处理事件的一系列回调就是在 TcpConnection类中设置和实现的。

TcpConnection断开连接

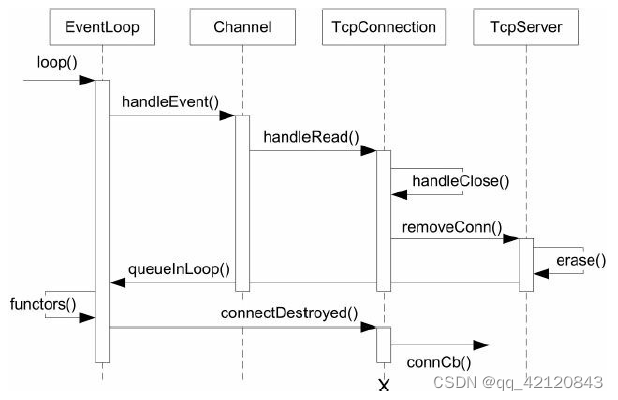

muduo只有一种关闭连接的方式：被动关闭。即对方先关闭连接，本地read(2)返回0，触发关闭逻辑。函数调用流程如下

实现代码

代码量比较大，但是逻辑比较简单

// TcpConnection.h
#pragma once
#include "noncopyable.h"
#include "InetAddress.h"
#include "Callbacks.h"
#include "Buffer.h"
#include "Timestamp.h"#include <atomic>
#include <memory>
#include <string>class Channel;
class EventLoop;
class Socket;// TcpServer -> Acceptor -> 有一个新用户连接，通过accept得到connfd
// -> TcpConnection 设置回调 -> Channel -> Poller -> Channel的回调操作
// 对 成功与服务器建立连接所得的connfd的封装
class TcpConnection : noncopyable, public std::enable_shared_from_this<TcpConnection>
{
public:TcpConnection(EventLoop *loop,const std::string &nameArg,int sockfd,const InetAddress& localAddr,const InetAddress& peerAddr);~TcpConnection();EventLoop* getLoop() const { return loop_; }// getLoopNameconst std::string& name() const { return name_; }const InetAddress& localAddress() const { return localAddr_; }const InetAddress& peerAddress() const { return peerAddr_; }bool connected() const { return state_ == kConnected; }// 发送数据void send(const std::string &buf);// 关闭连接void shutdown();void setConnectionCallback(const ConnectionCallback& cb) { connectionCallback_ = cb; }void setMessageCallback(const MessageCallback &cb) { messageCallback_ = cb; }void setWriteCompleteCallback(const WriteCompleteCallback &cb) { writeCompleteCallback_ = cb; }void setHighWaterMarkCallback(const HighWaterMarkCallback &cb, size_t highWaterMark) { highWaterMarkCallback_ = cb; highWaterMark_ = highWaterMark; }void setCloseCallback(const CloseCallback& cb) { closeCallback_ = cb; }// 连接建立void connectEstablished();// 连接销毁void connectDestroyed();private:enum StateE { kDisconnected, kConnecting, kConnected, kDisconnecting };void setState(StateE state) { state_ = state; }void handleRead(Timestamp receiveTime);void handleWrite();void handleClose();void handleError();void sendInLoop(const void* message, size_t len);void shutdownInLoop();EventLoop *loop_; // 不是baseLoop，因为 TcpConnection都是在subLoop中管理const std::string name_;std::atomic_int state_;bool reading_;// 与Acceptor类似， Acceptor -> mainLoop , TcpConnection -> subLoopstd::unique_ptr<Socket> socket_;std::unique_ptr<Channel> channel_;const InetAddress localAddr_;const InetAddress peerAddr_;ConnectionCallback connectionCallback_;MessageCallback messageCallback_; // 有读写消息时的回调WriteCompleteCallback writeCompleteCallback_;HighWaterMarkCallback highWaterMarkCallback_;CloseCallback closeCallback_;size_t highWaterMark_;Buffer inputBuffer_; // 接收数据的缓冲区Buffer outputBuffer_; // 发送数据的缓冲区
};// TcpConnection.cc
#include "TcpConnection.h"
#include "Logger.h"
#include "Socket.h"
#include "Channel.h"
#include "EventLoop.h"#include <functional>
#include <errno.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <strings.h>
#include <netinet/tcp.h>
#include <string>static EventLoop* CheckLoopNotNull(EventLoop *loop)
{if(loop == nullptr){LOG_FATAL("%s:%s:%d TcpConnection Loop is null! \\n", __FILE__, __FUNCTION__, __LINE__);}return loop;
}TcpConnection::TcpConnection(EventLoop *loop,const std::string &nameArg,int sockfd,const InetAddress& localAddr,const InetAddress& peerAddr): loop_(CheckLoopNotNull(loop)), name_(nameArg), state_(kConnecting), reading_(true), socket_(new Socket(sockfd)), channel_(new Channel(loop, sockfd)), localAddr_(localAddr), peerAddr_(peerAddr), highWaterMark_(64*1024*1024) // 64M
{// 给channel设置相应回调// Poller 给 Channel通知感兴趣的事件发生，Channel会回调相应操作函数channel_->setReadCallback(std::bind(&TcpConnection::handleRead, this, std::placeholders::_1));channel_->setWriteCallback(std::bind(&TcpConnection::handleWrite, this));channel_->setCloseCallback(std::bind(&TcpConnection::handleClose, this));channel_->setErrorCallback(std::bind(&TcpConnection::handleError, this));LOG_INFO("TcpConnection::ctor[%s] at fd=%d\\n", name_.c_str(), sockfd);socket_->setKeepAlive(true);
}TcpConnection::~TcpConnection()
{LOG_INFO("TcpConnection::dtor[%s] at fd=%d state=%d\\n",name_.c_str(), channel_->fd(), (int)state_);
}void TcpConnection::send(const std::string &buf)
{if(state_ == kConnected){if(loop_->isInLoopThread()){sendInLoop(buf.c_str(), buf.size());}else  // 唤醒Loop所属线程执行send{loop_->runInLoop(std::bind(&TcpConnection::sendInLoop,this,buf.c_str(),buf.size()));}}
}// 发送数据时，若应用写的快，内核发送满
// 需要把待发送数据写入缓冲区中
// 且设置了水位回调
void TcpConnection::sendInLoop(const void* data, size_t len)
{ssize_t nwrote = 0;size_t remaining = len; // 每一次写后，剩余没写的数据量bool faultError = false;// 之前调用过该 TcpConnection 的shutdown，不能再进行发送if(state_ == kDisconnected){LOG_ERROR("disconnected, give up writing!");return;}// !!if no thing in output queue, try writing directly// 表示channel_第一次开始写数据， 且缓冲区无待发数据,则可以直接发data数据// 否则要将数据加入到 outputBuffer_ 后发送if(!channel_->isWriting() && outputBuffer_.readableBytes() == 0){nwrote = ::write(channel_->fd(), data, len);if(nwrote >= 0){remaining = len - nwrote;if(remaining == 0 && writeCompleteCallback_){// 数据全部发完，不用给channel设置epollout事件loop_->queueInLoop(std::bind(writeCompleteCallback_, shared_from_this()));}}else {nwrote = 0;// EWOULDBLOCK没有数据的正常返回if(errno != EWOULDBLOCK){LOG_ERROR("TcpConnection::sendInLoop");// SIGPIPE SIGRESETif(errno == EPIPE || errno == ECONNRESET){faultError = true; }}}}// 说明本次write，并没把数据全发出，剩余数据需要保存到缓冲区中，然后给channel// 注册epollout事件，poller发现tcp的发送缓冲区有内容可发，会通知相应的sock--channel调用writeCallback_回调// 即调用 TcpConnection::handleWrite(),把发送缓冲区中数据全发送完成if(!faultError && remaining > 0){// 目前发送缓冲区剩余待发送数据长度size_t oldLen = outputBuffer_.readableBytes();if(oldLen + remaining >= highWaterMark_&& oldLen < highWaterMark_  // 上一次若已经超过高水位，不需要调用回调&& highWaterMarkCallback_){loop_->queueInLoop(std::bind(highWaterMarkCallback_, shared_from_this(), oldLen + remaining));}outputBuffer_.append((char*)data + nwrote, remaining);if(!channel_->isWriting()){channel_->enableWriting(); // 一定要注册channel写事件，否则poller不会给channel通知epollout}}
}void TcpConnection::shutdown()
{if(state_ == kConnected){setState(kDisconnecting);loop_->runInLoop(std::bind(&TcpConnection::shutdownInLoop, this));}
}void TcpConnection::shutdownInLoop()
{// 保证优雅关闭，发完数据才关闭// 不关注channel_的写事件了，表明outputBuffer中数据已全部发送完成if(!channel_->isWriting()){socket_->shutdownWrite();}
}void TcpConnection::connectEstablished()
{setState(kConnected);// 检测Channel对应的TcpConnection的生命期// 防止对应的Channel在销毁后仍被调用其回调channel_->tie(shared_from_this());channel_->enableReading(); // 向Poller注册Channel的epollin事件// 新连接建立，执行回调connectionCallback_(shared_from_this()); // 用户定义的函数
}void TcpConnection::connectDestroyed()
{if(state_ == kConnected){setState(kDisconnected);channel_->disableAll(); // 把对channel所有感兴趣的事件从Poller中删除掉connectionCallback_(shared_from_this()); //用户设置的回调}channel_->remove(); // 把channel从Poller中删掉（从map中删掉）
}void TcpConnection::handleRead(Timestamp receiveTime)
{int savedErrno = 0;ssize_t n = inputBuffer_.readFd(channel_->fd(), &savedErrno);if(n > 0){// 已建立连接的用户，有可读事件发生了，调用用户传入的回调操作onMessagemessageCallback_(shared_from_this(), &inputBuffer_, receiveTime);}else if(n == 0) // 连接断开{handleClose();}else {errno = savedErrno;LOG_ERROR("TcpConnection::handleRead");handleError();}
}void TcpConnection::handleWrite()
{if(channel_->isWriting()){int savedErrno = 0;ssize_t n = outputBuffer_.writeFd(channel_->fd(), &savedErrno);if(n > 0){outputBuffer_.retrieve(n);// 缓冲区内数据都发出了，则不需要再关注fd的可写事件了if(outputBuffer_.readableBytes() == 0){channel_->disableWriting();if(writeCompleteCallback_){// 唤醒loop_对应线程执行回调loop_->queueInLoop(std::bind(writeCompleteCallback_, shared_from_this()));}if(state_ == kDisconnecting) // 保证优雅关闭{shutdownInLoop();}}}else {LOG_ERROR("TcpConnection::handleWrite");}}else{LOG_ERROR("TcpConnection fd=%d is down no more writing \\n", channel_->fd());}}void TcpConnection::handleClose()
{LOG_INFO("TcpConnection::handleClose fd = %d state=%d\\n", channel_->fd(), (int)state_);setState(kDisconnected);channel_->disableAll();TcpConnectionPtr connPtr(shared_from_this());connectionCallback_(connPtr); //closeCallback_(connPtr); // 关闭连接的回调 执行的是TcpServer::removeConnection回调方法
}void TcpConnection::handleError()
{int optval;socklen_t optlen = sizeof optval;int err = 0;// 获得错误码信息if(::getsockopt(channel_->fd(), SOL_SOCKET, SO_ERROR, &optval, &optlen) < 0){err = errno;}else {err = optval;}LOG_ERROR("TcpConnection::handleError name:%s - SO_ERROR:%d \\n",name_.c_str(), err);
}

杂项

• 【TODO】TcpConnection 类 和 Channel 类 以及 Acceptor类的区别?

TcpConnection 是对一条建立起来的连接fd进行封装，而 Channel 是对于任意fd 的封装

TcpConnection 拥有 其对应的 Channel，反之不对。

Acceptor 可以认为是一个特殊的TcpConnection，它只处理读事件，即监听新连接的到来,它运行在 mainLoop上
