实验6---SpringAOP-XML+注解实现
实验6---SpringAOP-XML+注解实现
需要完整的代码请私聊博主进行下载!!!
如有不懂可以私聊博主进行下载,博主可是一个热心肠哦!
一、实验目的及任务
通过该实验,掌握Spring面向切面编程常用方法,掌握利用Spring xml配置方式实现面向切面编程AOP。
二、实验环境及条件
主机操作系统为Win10,Tomcat,j2sdk1.6或以上版本。
三、实验实施步骤
略
四、实验报告内容
代码详见附件1

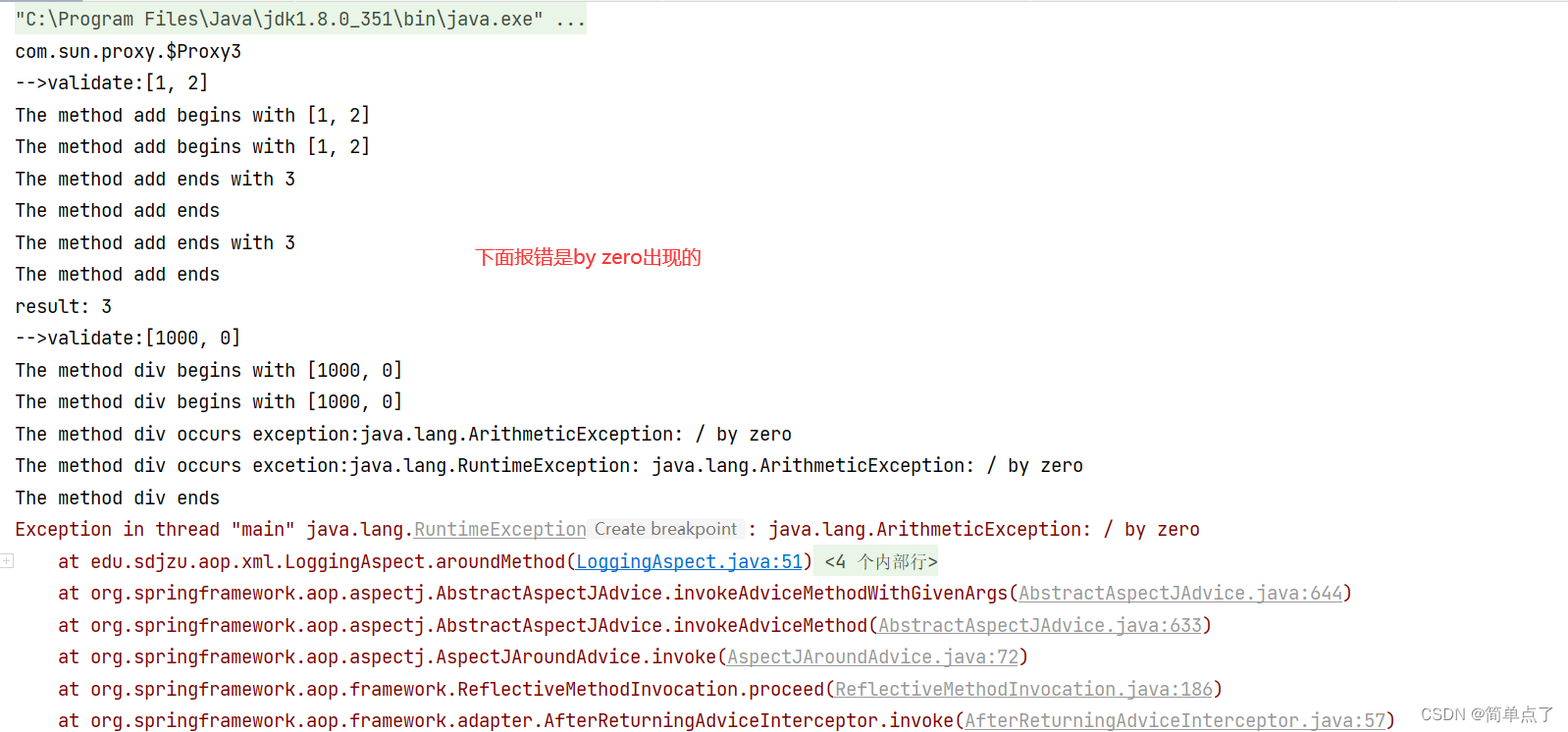

1 程序在控制台的输出结果是什么?给出截图。
图1:没有进行注解配置的时候的效果。
图2:采用注解配置的时候的效果。
2 在本程序中,对应概念切面, 切入点,前置通知(增强)和后置通知(增强)的配置和代码有哪些?切面类包含了哪些内容,切点表达式的作用是什么?
切面就是定义的Logger等类,对应的配置就是xml中定义aop:aspect
前置:beforeMethod,对应的xml的配置文件中有before的配置
后置:afterMethodm,对应的xml的配置文件中有after的配置
切面类:就是Loggerxxx
切面表达式:就是@Pointcut或者是aop:pointcut配置的内容,指定一种规则。
3 当调用add方法时,哪些切面方法被执行了?这些方法属于哪种类型的通知(增强)?
符合切面表达式子的都会执行。
4 在本程序中,如果用注解方式对除法(div)方法添加验证切面时(如,运行div除法之前先检查除数是否为0),应对VlidationAspect类做何种修改?
可以采用context扫描需要添加spring对aop的自动代理。
可以采用非context的扫描的方式,需要bean指定切面类的bean。
附件1

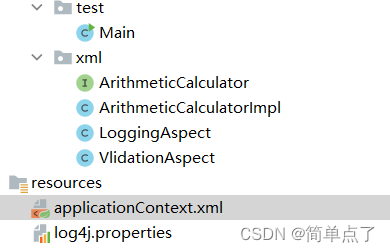

1.项目目录
2.xml配置文件代码
一个采用的是xml的实现一个采用的是注解的实现
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:aop="http://www.springframework.org/schema/aop"xmlns:context="http://www.springframework.org/schema/context"xsi:schemaLocation="http://www.springframework.org/schema/beanshttp://www.springframework.org/schema/beans/spring-beans.xsdhttp://www.springframework.org/schema/contexthttp://www.springframework.org/schema/context/spring-context-3.2.xsdhttp://www.springframework.org/schema/aophttp://www.springframework.org/schema/aop/spring-aop-3.2.xsd"><context:component-scan base-package="xxx.xxx.aop"/><aop:aspectj-autoproxy/><!--配置bean --><bean id="arithmeticCalculator"class="xxx.xxx.aop.xml.ArithmeticCalculatorImpl"></bean><!-- 配置切面的bean.--><bean id="loggingAspect"class="xxx.xxx.aop.xml.LoggingAspect"></bean><bean id="vlidationAspect"class="xxx.xxx.aop.xml.VlidationAspect"></bean><!--配直AOP --><aop:config><!--配置切点表达式-->
<aop:pointcut id="pointcut" expression="execution(* xxx.xxx.aop.xml.ArithmeticCalculator.*(int , int ))"/>
<!-- 配置切面及通知--><aop:aspect ref="loggingAspect" order="2"><aop:before method="beforeMethod" pointcut-ref="pointcut"/><aop:after method="afterMethod" pointcut-ref="pointcut"/><aop:after-throwing method="afterThrowing" pointcut-ref="pointcut" throwing="e"/><aop:after-returning method="afterReturning" pointcut-ref="pointcut" returning="result"/><aop:around method="aroundMethod" pointcut-ref="pointcut" /></aop:aspect></aop:config></beans>

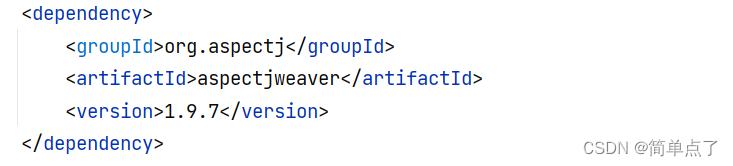

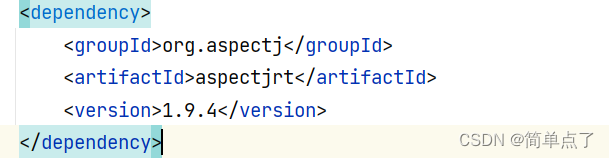

3.pom依赖
