Android Camera性能分析 第28讲 Buffer Limit Latency

本讲是​ Android Camera性能分析专题 ​的第28讲，我们介绍CameraServer Buffer Limit Latency，包括如下内容：

1. Buffer Limit Latency是什么
2. Buffer Limit Latency配置
3. Buffer Limit Latency实战

视频在线观看：

• 极客笔记：
  https://app5d5waway1614.h5.xiaoeknow.com/p/course/column/p_6252b815e4b01a4851ef948a?type=3

加入知识星球与更多Camera同学交流
– 星球名称：深入浅出Android Camera
– 星球ID: 17296815
– Wechat: 极客笔记圈

Buffer Limit Latency是什么

Buffer Limit Latency用于衡量当某路Stream dequeue buffer数量达到producer的最大值后，等待HAL处理的耗时。

什么是numOutstandingBuffers

• 已经送给HAL，HAL正在处理，未返回的Buffer数量

• 视频讲解演示如何查看每路stream的numOutstandingBuffers

什么是camera_stream::max_buffers

• Camera HAL配置的，在未返回buffer的情况下，最多dequeueBuffer的数量

• 视频讲解演示如何查看每路stream HAL配置的最大max_buffers

Buffer Limit Latency配置

Buffer Limit Latency直方图配置

• 分成10份（默认值）， 间隔为33ms

  • static const int32_t kBufferLimitLatencyBinSize = 33; //in ms

  • Latency histogram of the wait time for handout buffer count to drop below max_buffers.

添加Sample的时机

• 当numOutstandingBuffers等于camera_stream::max_buffers时，会等待新的Buffer返回，该Latency衡量的是这个等待时间

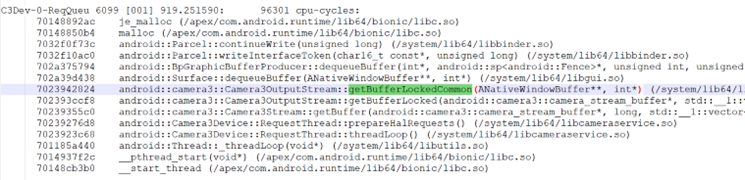

Buffer Limit Latency实战

// Wait for new buffer returned back if we are running into the limit.
size_t numOutstandingBuffers = getHandoutOutputBufferCountLocked();
if (numOutstandingBuffers == camera_stream::max_buffers) {ALOGV("%s: Already dequeued max output buffers (%d), wait for next returned one.",__FUNCTION__, camera_stream::max_buffers);nsecs_t waitStart = systemTime(SYSTEM_TIME_MONOTONIC);if (waitBufferTimeout < kWaitForBufferDuration) {waitBufferTimeout = kWaitForBufferDuration;}res = mOutputBufferReturnedSignal.waitRelative(mLock, waitBufferTimeout);nsecs_t waitEnd = systemTime(SYSTEM_TIME_MONOTONIC);mBufferLimitLatency.add(waitStart, waitEnd);if (res != OK) {if (res == TIMED_OUT) {ALOGE("%s: wait for output buffer return timed out after %lldms (max_buffers %d)",__FUNCTION__, waitBufferTimeout / 1000000LL,camera_stream::max_buffers);}return res;}size_t updatedNumOutstandingBuffers = getHandoutOutputBufferCountLocked();if (updatedNumOutstandingBuffers >= numOutstandingBuffers) {ALOGE("%s: outsanding buffer count goes from %zu to %zu, ""getBuffer(s) call must not run in parallel!", __FUNCTION__,numOutstandingBuffers, updatedNumOutstandingBuffers);return INVALID_OPERATION;}
}
