JTS几何面的中心点不一定在几何体上
JTS几何面的中心点不一定在几何体上
实验
1、在JTS TestBuilder上画一个月亮形状的面积
2、用java代码获取中心点
import org.locationtech.jts.geom.Geometry;
import org.locationtech.jts.io.ParseException;public class Test {public static void main(String[] args) throws ParseException {String xin_0="POLYGON ((113.03925000000001 22.953510000000005, 113.03923666666667 22.953516666666665, 113.03921666666666 22.95352, 113.03915666666667 22.953533333333333, 113.03914333333333 22.953533333333333, ......))";Geometry geometry0 = GeometryUtil.readGeometry(xin_0);System.out.println(geometry0.getCentroid().getX());System.out.println(geometry0.getCentroid().getY());}}
输出结果:
113.0386093933024
22.95282839698736
3、结论

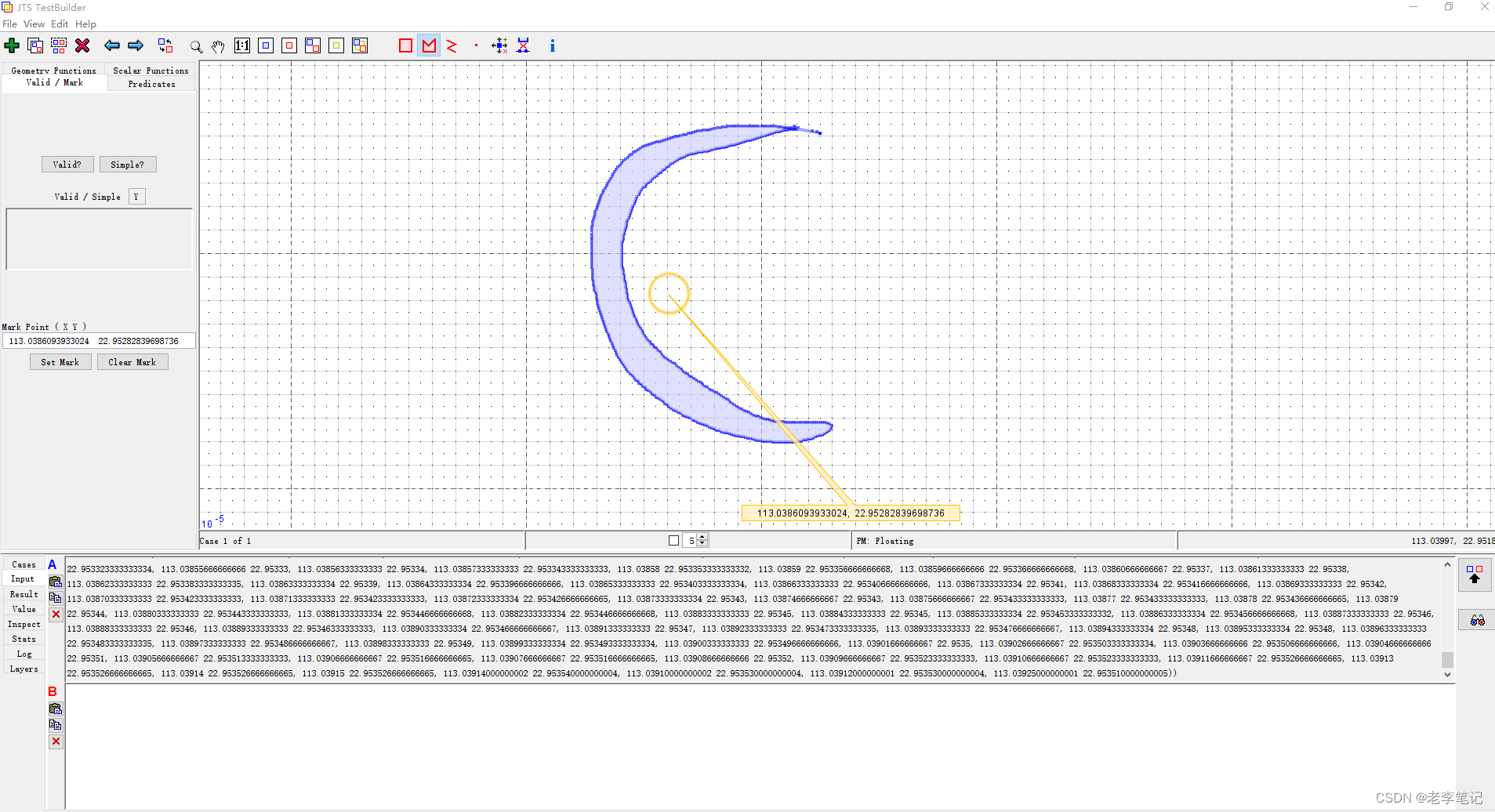

如上图,中心点为黄色圆圈部分,在中心点外面。
4、补充
JTS TestBuilder 下载地址一
JTS TestBuilder 下载地址二
