apache pulsar订阅类型：KeyShared与Shared行为分析

订阅类型

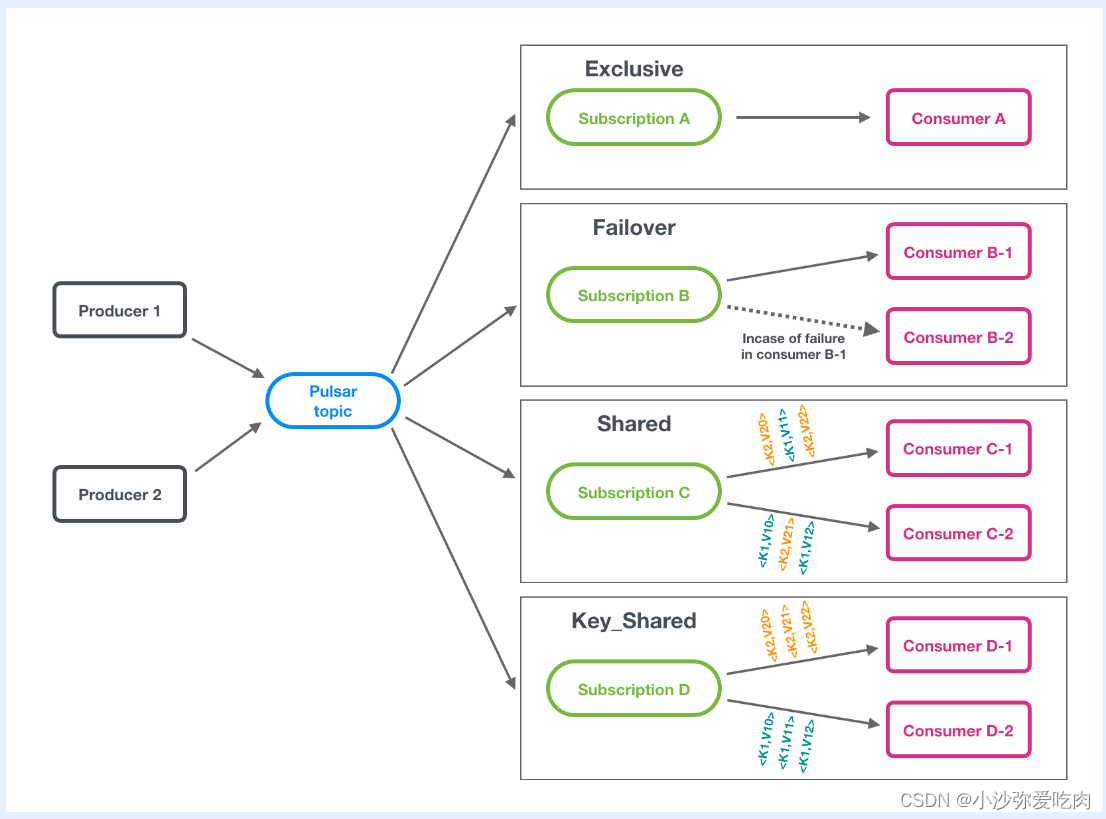

参见以下图片

生产者

• 生产者参数
  • Topic: 指定消息的发送目的地
• 消息
  • 消息发送方式：send，阻塞式发送
  • 消息参数pulsar.ProducerMessage
  • Payload: 实际上携带的数据部分,比如我想发送hello world,放在该字段中即可

消费者

• 消费者参数
  • Topic: 指定订阅的topic
  • SubscriptionName: 指定订阅的名字
  • Type: 订阅类型,有以下四种
    • Exclusive
    • Shared
    • Failover
    • KeyShared

订阅行为分析

订阅行为分析皆基于生产者和消费都往同一个Topic发送和收取消息。
以下将消费者简记为C,某一个消费者记作Ci,比如C1,C2,C3。
将生产者简记为P,某一个生产者记作Pi,比如P1,P2,P3。
生产者P表示泛指，表示生产者这个身份或者生产者这个群体。
消费者C表示泛指，表示消费者这个身份或者消费者这个群体。

• 消费者的SubscriptionName相同,比如C1.SubscriptionName="my-sub1",C2.SubscriptionName="my-sub1"
  • 即同一SubscriptionName下不允许指定不同的Type类型，比如C1.Type=Shared C2.Type=KeyShared。C1、C2的Type必须是相同的。
  • 同一SubscriptionName下不同Type类型的消息发送模式如下：
    • Shared模式下：消息的发送是随机的
      • 假定有生产者P1,消费者C1,C2
      • P1往Topic发送消息10条消息，假定编号为0-9
      • 消费者收到消息的可能性结果是随机的,以下结果都是可能的
        • C1收到0 2 5; C2收到1 3 4 6 7 8 9
        • C1收到0 1 2 3 4 5; C2收到6 7 8 9
        • 以下省略其他可能
    • KeyShared模式下：若消息一开始就分配给了某个消费者，后续的消息就会一直发往这个消费者
      • 假定有生产者P1,消费者C1,C2
      • P1往Topic发送消息10条消息，假定编号为0-9
      • 假定C1收到消息了(会收到全部消息: 0-9)，那么生产者后续生产的消息会全部发往C1,由C1进行处理，C2则收不到任何消息
      • 此时如果C1宕机了，那么消息才会被发到C2由C2处理
• 消费者的SubscriptionName不同，比如C1.SubscriptionName="my-sub1",C2.SubscriptionName="my-sub2"
  • 生产者生产的消息都会发送到两个订阅区，比如my-sub1，my-sub2，然后由订阅区消费者的Type类型决定该订阅区中的消息该怎么发送
  • 同一个订阅区(即SubscriptionName相同)下不允许指定不同的Type类型
  • 相同订阅区的消息发送模式Shared模式与KeyShared模式参照上面所阐述的案例

生产者消费定义

“-” 表示不指定SubscriptionName，生产者不需要指定该参数，消费者需要

结果

下面给出我本机运行的结果。代码就不贴了，关于如何定义生产者和消费者的代码请参考官方文档：https://pulsar.apache.org/docs/2.11.x/client-libraries-go/#producer-operations

• producer
  发送0-8总共9条消息
• sharedConsumer1
  收到消息0 3 4 5

  topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-0, ID=35:63:0, publishTime=2023-04-06 11:37:07.769 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
  topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-3, ID=35:66:0, publishTime=2023-04-06 11:37:07.795 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
  topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-4, ID=35:67:0, publishTime=2023-04-06 11:37:07.799 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
  topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-5, ID=35:68:0, publishTime=2023-04-06 11:37:07.803 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>


• sharedConsumer2
  收到消息1 2 6 7 8

  topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-1, ID=35:64:0, publishTime=2023-04-06 11:37:07.783 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
  topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-2, ID=35:65:0, publishTime=2023-04-06 11:37:07.791 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
  topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-6, ID=35:69:0, publishTime=2023-04-06 11:37:07.807 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
  topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-7, ID=35:70:0, publishTime=2023-04-06 11:37:07.81 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
  topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-8, ID=35:71:0, publishTime=2023-04-06 11:37:07.814 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>


• keySharedConsumer1
  没有收到任何消息
• keySharedConsumer2
  收到消息 0 1 2 3 4 5 6 7 8

  topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-0, ID=35:63:0, publishTime=2023-04-06 11:37:07.769 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
  topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-1, ID=35:64:0, publishTime=2023-04-06 11:37:07.783 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
  topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-2, ID=35:65:0, publishTime=2023-04-06 11:37:07.791 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
  topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-3, ID=35:66:0, publishTime=2023-04-06 11:37:07.795 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
  topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-4, ID=35:67:0, publishTime=2023-04-06 11:37:07.799 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
  topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-5, ID=35:68:0, publishTime=2023-04-06 11:37:07.803 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
  topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-6, ID=35:69:0, publishTime=2023-04-06 11:37:07.807 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
  topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-7, ID=35:70:0, publishTime=2023-04-06 11:37:07.81 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
  topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-8, ID=35:71:0, publishTime=2023-04-06 11:37:07.814 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
