AlmaLinux 9上安装Kubernetes 1.24.12集群

1. 禁用swap

sudo swapoff -a

2. 禁用防火墙

sudo systemctl stop firewalld
sudo systemctl disable firewalld

3. 将SELinux设置为permissive模式

sudo setenforce 0
sudo sed -i 's/^SELINUX=enforcing$/SELINUX=permissive/' /etc/selinux/config

4. 安装 docker-ce

卸载Podman，runc

sudo dnf remove -y podman runc cri-o docker-ce libcgroup cri-dockerd docker-buildx-plugin docker-compose-plugin libcgroup cri-dockerd

安装 docker-ce

sudo yum-config-manager \\--add-repo \\https://download.docker.com/linux/centos/docker-ce.reposudo yum install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

sudo rpm -ivh https://vault.centos.org/centos/8/BaseOS/x86_64/os/Packages/libcgroup-0.41-19.el8.x86_64.rpm
sudo rpm -ivh https://github.com/Mirantis/cri-dockerd/releases/download/v0.3.1/cri-dockerd-0.3.1-3.el8.x86_64.rpmsudo systemctl daemon-reload
sudo systemctl enable --now docker
sudo systemctl enable --now cri-docker.service
sudo systemctl enable --now cri-docker.socketsystemctl status docker
systemctl status cri-docker
systemctl status cri-docker.socketsudo usermod -a -G docker oracle

5. 安装kubelet kubeadm kubectl

cat <<EOF | sudo tee /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://packages.cloud.google.com/yum/repos/kubernetes-el7-\\$basearch
enabled=1
gpgcheck=1
gpgkey=https://packages.cloud.google.com/yum/doc/rpm-package-key.gpg
exclude=kubelet kubeadm kubectl
EOFsudo dnf install -y kubelet-1.24.12 kubeadm-1.24.12 kubectl-1.24.12 --disableexcludes=kubernetes
sudo systemctl enable --now kubelet

6. 更新模块设置

cat <<EOF | sudo tee /etc/modules-load.d/k8s.conf
overlay
br_netfilter
ip_tables
iptable_filter
EOF

对模块使用modprobe

sudo modprobe overlay
sudo modprobe br_netfilter
sudo modprobe ip_tables
sudo modprobe iptable_filter

为 k8s.conf 设置 sysctl.d

cat <<EOF | sudo tee /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-iptables  = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward                 = 1
EOF

应用 sysctl 参数，无需重启

sysctl --system

7. 初始化Kubernetes集群

export PUBLIC_IP=YOUR_PUBLIC_IP
export HOST=`hostname`cat <<EOF > kubeadm-config.yaml
kind: KubeletConfiguration
apiVersion: kubelet.config.k8s.io/v1beta1
cgroupDriver: systemd
---
apiVersion: kubeadm.k8s.io/v1beta3
bootstrapTokens:
- groups:- system:bootstrappers:kubeadm:default-node-tokentoken: abcdef.0123456789abcdefttl: 24h0m0susages:- signing- authentication
kind: InitConfiguration
localAPIEndpoint:advertiseAddress: $PUBLIC_IPbindPort: 6443
nodeRegistration:criSocket: unix:///var/run/cri-dockerd.sockimagePullPolicy: IfNotPresentname: $HOSTtaints: null
---
apiServer:timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta3
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
dns: {}
etcd:local:dataDir: /var/lib/etcd
imageRepository: registry.k8s.io
kind: ClusterConfiguration
kubernetesVersion: 1.24.12
networking:dnsDomain: cluster.localpodSubnet: 10.244.0.0/16serviceSubnet: 10.96.0.0/12
scheduler: {}
EOFkubeadm init --config kubeadm-config.yaml

输出日志示例，

Your Kubernetes control-plane has initialized successfully!To start using your cluster, you need to run the following as a regular user:mkdir -p $HOME/.kubesudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/configsudo chown $(id -u):$(id -g) $HOME/.kube/configAlternatively, if you are the root user, you can run:export KUBECONFIG=/etc/kubernetes/admin.confYou should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:https://kubernetes.io/docs/concepts/cluster-administration/addons/Then you can join any number of worker nodes by running the following on each as root:kubeadm join 192.168.31.44:6443 --token abcdef.0123456789abcdef \\--discovery-token-ca-cert-hash sha256:901a9b47e8615b1e80f1811f5ff6dbdbf5ffac78094dc23f37318d0faeda83e1

8. 配置集群访问

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/configkubectl taint nodes --all node-role.kubernetes.io/control-plane-kubectl completion bash | sudo tee /etc/bash_completion.d/kubectl > /dev/null
echo 'alias k=kubectl' >>~/.bashrc
echo 'complete -o default -F __start_kubectl k' >>~/.bashrc

9. 安装网络插件

kubectl apply -f https://raw.githubusercontent.com/flannel-io/flannel/master/Documentation/kube-flannel.yml

10. 加入2个worker节点

kubeadm join 192.168.31.44:6443 --token abcdef.0123456789abcdef \\--discovery-token-ca-cert-hash sha256:901a9b47e8615b1e80f1811f5ff6dbdbf5ffac78094dc23f37318d0faeda83e1 --cir-socket unix:///var/run/cri-dockerd.sock

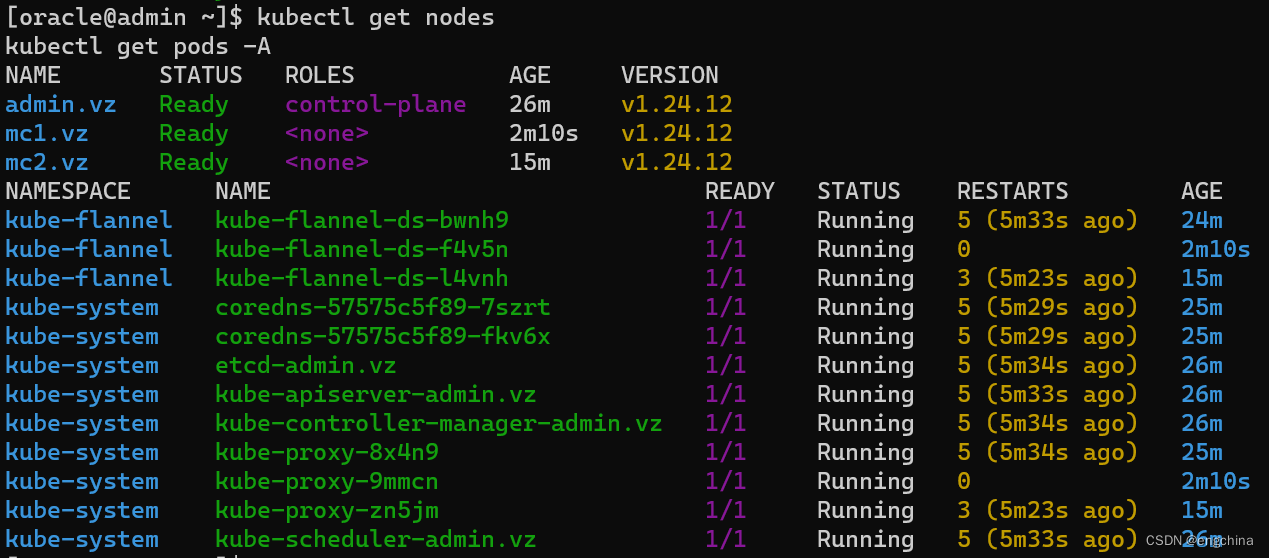

11. 确认集群

kubectl get nodes
kubectl get pods -A

(Optional) 安装 MetalLB

kubectl apply -f https://raw.githubusercontent.com/metallb/metallb/v0.11.0/manifests/namespace.yaml
kubectl create secret generic \\-n metallb-system memberlist \\--from-literal=secretkey="$(openssl rand -base64 128)"
kubectl apply -f https://raw.githubusercontent.com/metallb/metallb/v0.11.0/manifests/metallb.yaml

kubectl apply -f - <<-EOF
apiVersion: v1
kind: ConfigMap
metadata:namespace: metallb-systemname: config
data:config: |address-pools:- name: my-ip-spaceprotocol: layer2addresses:- 192.168.31.51-192.168.31.59
EOF

(Optional) 安装 local-path-provisioner

kubectl apply -f https://raw.githubusercontent.com/rancher/local-path-provisioner/v0.0.23/deploy/local-path-storage.yaml

kubectl patch storageclass local-path -p '{"metadata": {"annotations":{"storageclass.kubernetes.io/is-default-class":"true"}}}'
kubectl patch storageclass local-path -p '{"metadata": {"annotations":{"storageclass.beta.kubernetes.io/is-default-class":"true"}}}'

完结！
