【Java项目】好客租房——前台分析

网友: 文章列表 2024-03-21 17:00:34

【Java项目】好客租房——前台分析

前置知识：

ElasticSearch

ElasticStack

  • 地图查房
  • 关键字搜索

前台

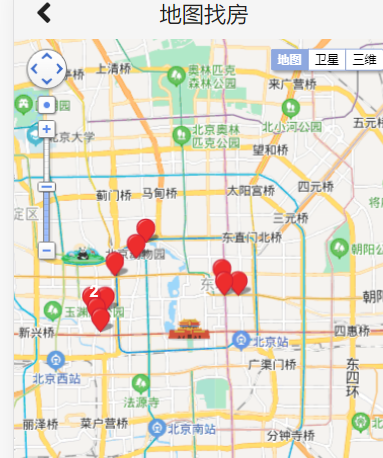

地图查房

文档：http://lbsyun.baidu.com/index.php?title=jspopular3.0

导入BMap

<script type="text/javascript" src="https://api.map.baidu.com/api?v=3.0&ak=q60ejYQeO2qZO6dYhWPOHea4aY0bhrqG&s=1"></script><script type="text/javascript" src="http://api.map.baidu.com/library/TextIconOverlay/1.2/src/TextIconOverlay_min.js"></script><script type="text/javascript" src="http://api.map.baidu.com/library/MarkerClusterer/1.2/src/MarkerClusterer_min.js"></script>

若在子模块直接使用BMap,会出现未定义的错误，原因是组件未加载

需要在 public/index.html 中，先将BMap和BMapLib载入到window

<script type="text/javascript">window.BMap = BMap;window.BMapLib = BMapLib;
</script>

【Java项目】好客租房——前台分析

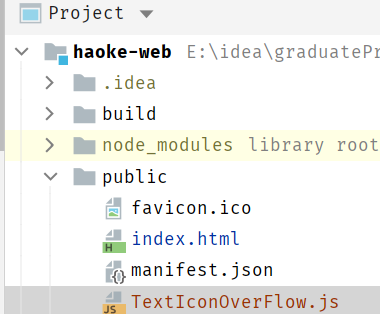

使用自定义OverFlowIcon

【Java项目】好客租房——前台分析

【Java项目】好客租房——前台分析

修改数据加载逻辑

graphql接口

schema {query: HaokeQuery
}type HaokeQuery{#分页查询房源信息-应用于前台房源信息HouseResourcesList(page:Int, pageSize:Int):TableResult# 通过Id查询房源信息HouseResources(id:ID): HouseResources#首页广告图-应用于前台首页IndexAdList: IndexAdResult#地图查房房源数据MapHouseData:MapHouseDataResult
}type MapHouseDataResult{list:[MapHouseXY]
}type MapHouseXY{x:Floaty:Float
}

编写MapHouseDataResult、MapHouseXY

package com.haoke.api.vo.map;@Data
@AllArgsConstructor
@NoArgsConstructor
public class MapHouseDataResult {private List<MapHouseXY> list;
}

package com.haoke.api.vo.map;@Data
@AllArgsConstructor
@NoArgsConstructor
public class MapHouseXY {private Float x;private Float y;
}

MapHouseDataFetcher Graphql接口

package com.haoke.api.graphql.myDataFetcherImpl;@Component
public class MapHouseDataFetcher implements MyDataFetcher {@Overridepublic String fieldName() {return "MapHouseData";}@Overridepublic Object dataFetcher(DataFetchingEnvironment environment) {List<MapHouseXY> list = new ArrayList<>();list.add(new MapHouseXY(116.43244f,39.929986f));list.add(new MapHouseXY(116.424355f,39.92982f));list.add(new MapHouseXY(116.423349f,39.935214f));list.add(new MapHouseXY(116.350444f,39.931645f));list.add(new MapHouseXY(116.351684f,39.91867f));list.add(new MapHouseXY(116.353983f,39.913855f));list.add(new MapHouseXY(116.357253f,39.923152f));list.add(new MapHouseXY(116.349168f,39.923152f));list.add(new MapHouseXY(116.36232f,39.938339f));list.add(new MapHouseXY(116.374249f,39.94625f));list.add(new MapHouseXY(116.380178f,39.953053f));return new MapHouseDataResult(list);}
}

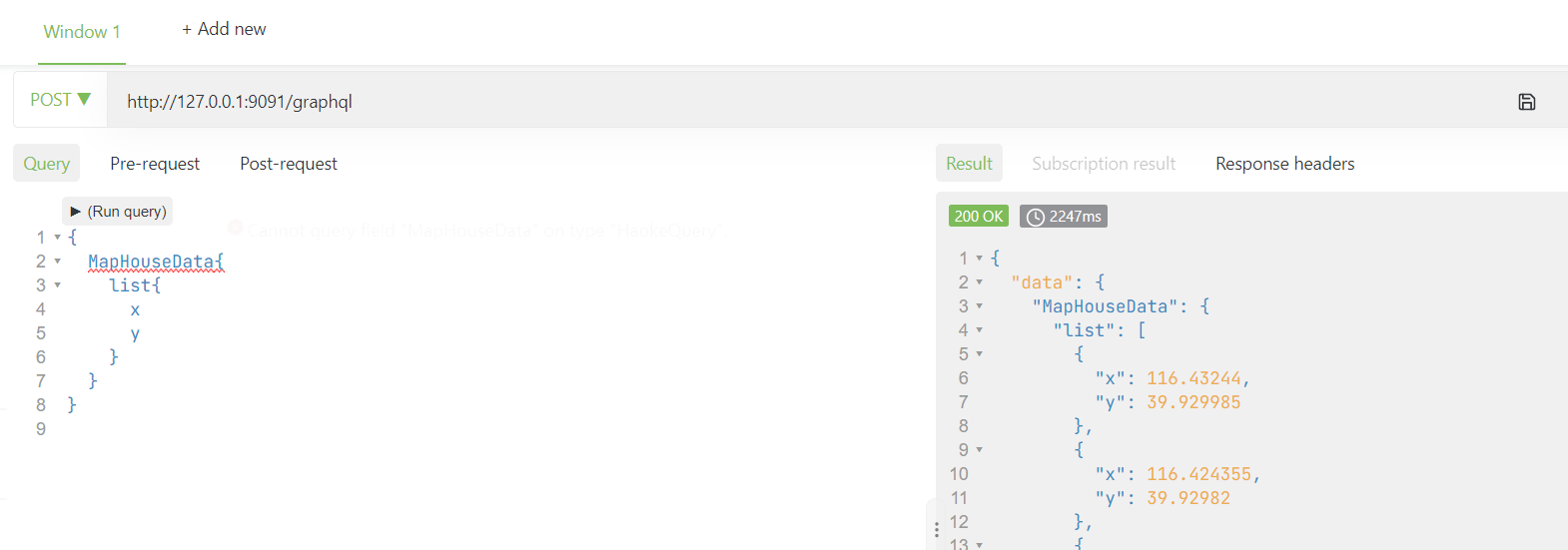

测试Graphql接口

【Java项目】好客租房——前台分析

整合前端

import { ApolloClient, gql , InMemoryCache} from '@apollo/client';const client = new ApolloClient({uri: "http://127.0.0.1:9091/graphql",cache: new InMemoryCache()
});//定义查询
const GET_MAP_HOUSE = gql`{MapHouseData {list {x y}}}
`;client.query({query: GET_MAP_HOUSE}).then(result =>{let xys = result.data.MapHouseData.list;var markers = [];var pt = null;for (var i in xys) {pt = new BMap.Point(xys[i].x, xys[i].y);markers.push(new BMap.Marker(pt));}// 地图上覆盖物的聚合效果var markerClusterer = new BMapLib.MarkerClusterer(map, {markers: markers,girdSize: 100,styles: [{background: 'rgba(12,181,106,0.9)',size: new BMap.Size(92, 92),textSize: '16',textColor: '#fff',borderRadius: 'true'}],});markerClusterer.setMaxZoom(50);markerClusterer.setGridSize(50);
});

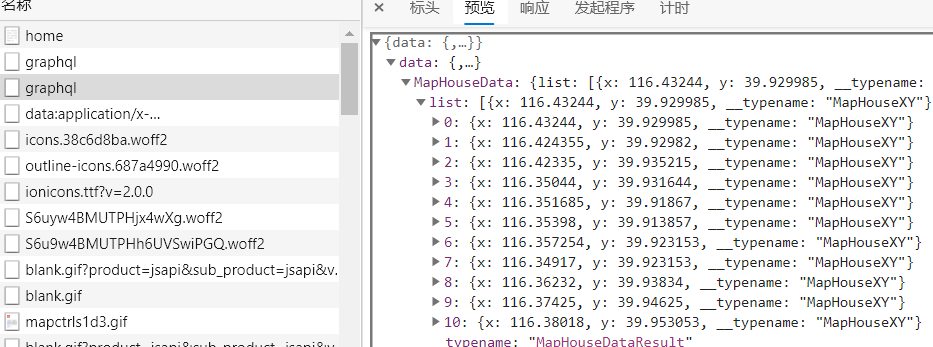

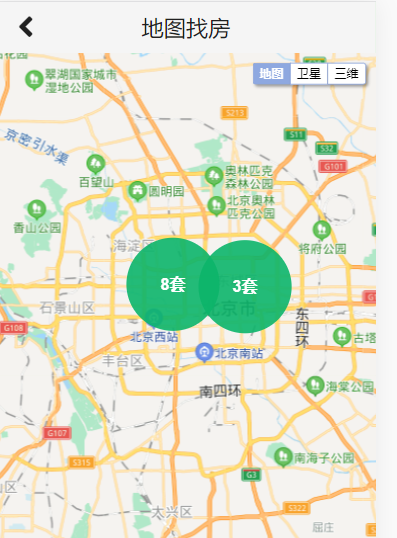

整合前端测试

测试后，数据是从后端传来的，则数据加载逻辑修改成功

【Java项目】好客租房——前台分析

增加拖动事件

在地图拖动后，增加事件，获取中心位置的坐标，以便后续的查询

map.addEventListener("dragend", function showInfo(){let cp = map.getCenter();let zoom = map.getZoom(); //缩放级别console.log(cp.lng + "," + cp.lat+" --> " + zoom);
});

百度地图缩放比例：

级别 比例尺
19级 20m
18级 50m
17级 100m
16级 200m
15级 500m
14级 1km
13级 2km
12级 5km
11级 10km
10级 20km
9级 25km
8级 50km
7级 100km
6级 200km
5级 500km
4级 1000km
3级 2000km
2级 5000km
1级 10000km

传递经纬度和缩放比例参数

【Java项目】好客租房——前台分析

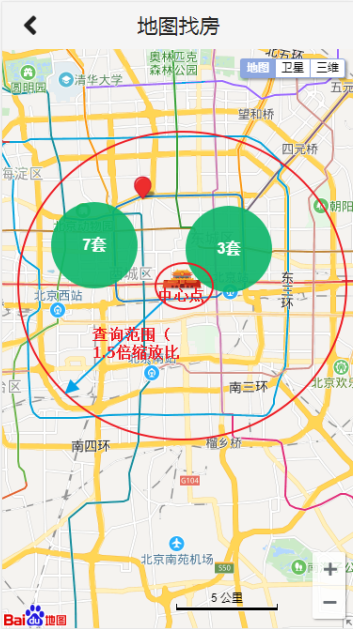

实现目标

拖动地图，更新范围内的房源数据

原理

  1. 拖动地图
  2. 获取地图中心点
  3. 将当前中心点的经纬度传及缩放比传递到后台
  4. 后台根据计算出的搜索范围，查询数据

实现

定义graphql接口
type HaokeQuery{#分页查询房源信息-应用于前台房源信息HouseResourcesList(page:Int, pageSize:Int):TableResult# 通过Id查询房源信息HouseResources(id:ID): HouseResources#首页广告图-应用于前台首页IndexAdList: IndexAdResult#地图查房房源数据MapHouseData(lng:Float,lat:Float,zoom:Int):MapHouseDataResult
}---
query queryMapHouseData($lng:Float,$lat:Float,$zoom:Int){MapHouseData(lng:$lng,lat:$lat,zoom:$zoom){list{xy}}
}
---
{"lng":116.54461241348382,"lat":39.91201079295558,"zoom":12
}
后台接口接收参数
package com.haoke.api.graphql.myDataFetcherImpl;@Component
public class MapHouseDataFetcher implements MyDataFetcher {@Overridepublic String fieldName() {return "MapHouseData";}@Overridepublic Object dataFetcher(DataFetchingEnvironment environment) {Float lat = environment.getArgument("lat");Float lng = environment.getArgument("lng");Integer zoom = environment.getArgument("zoom");System.out.println("lat -> "+ lat);...}
}

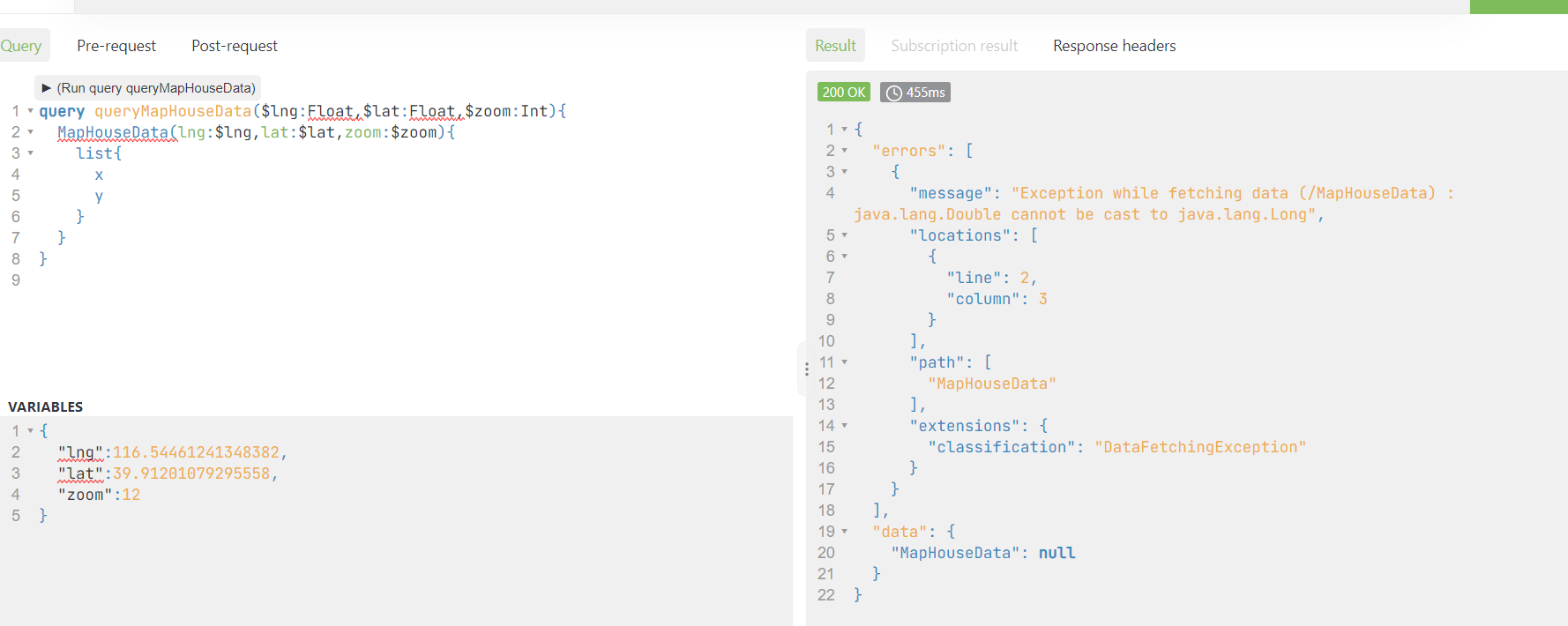

【Java项目】好客租房——前台分析

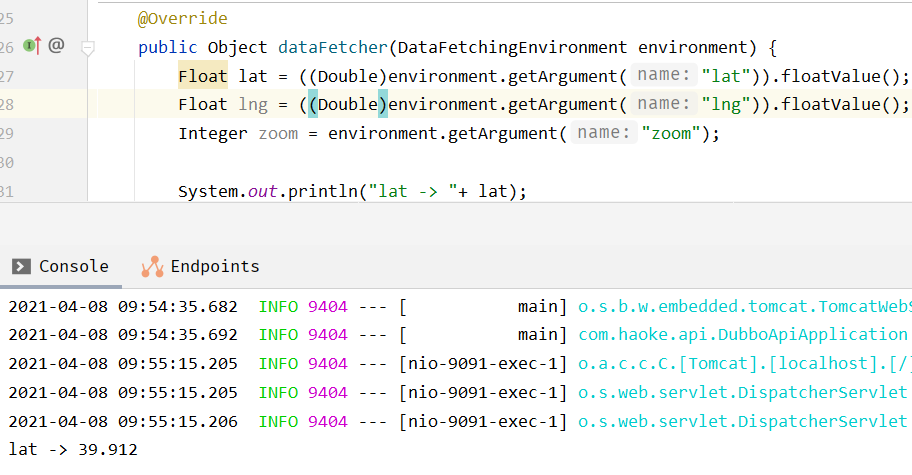

修改为

Float lat = ((Double)environment.getArgument("lat")).floatValue();
Float lng = ((Double)environment.getArgument("lng")).floatValue();
Integer zoom = environment.getArgument("zoom");System.out.println("lat -> "+ lat);

【Java项目】好客租房——前台分析

前端代码修改
import React from 'react';
import { Icon} from 'semantic-ui-react'
import { ApolloClient, gql , InMemoryCache} from '@apollo/client';const client = new ApolloClient({uri: "http://127.0.0.1:9091/graphql",cache: new InMemoryCache()
});//定义查询
const GET_MAP_HOUSE = gql`query queryMapHouseData($lng:Float,$lat:Float,$zoom:Int){MapHouseData(lng:$lng,lat:$lat,zoom:$zoom){list{xy}}}
`;// 百度地图API功能
const BMap = window.BMap;
const BMapLib = window.BMapLib;const showMapMarker =(xys,map)=>{let markers = [];let pt = null;for (let i in xys) {pt = new BMap.Point(xys[i].x, xys[i].y);markers.push(new BMap.Marker(pt));}// 地图上覆盖物的聚合效果var markerClusterer = new BMapLib.MarkerClusterer(map, {markers: markers,girdSize: 100,styles: [{background: 'rgba(12,181,106,0.9)',size: new BMap.Size(92, 92),textSize: '16',textColor: '#fff',borderRadius: 'true'}],});markerClusterer.setMaxZoom(50);markerClusterer.setGridSize(50);
}class MapHouse extends React.Component {constructor(props) {super(props);}componentDidMount() {//设置初始中心点let defaultX = 121.48130241985999;let defaultY = 31.235156971414239;let defaultZoom = 12;// 创建Map实例let map = new BMap.Map("allmap");// 初始化地图,设置中心点坐标和地图级别map.centerAndZoom(new BMap.Point(defaultX,defaultY), defaultZoom);// 开启鼠标滚轮缩放map.enableScrollWheelZoom(true);// 添加地图类型控件map.addControl(new BMap.MapTypeControl());// 设置地图缩放比例尺控件map.addControl(new BMap.ScaleControl({anchor: window.BMAP_NAVIGATION_CONTROL_ZOOM}));// 设置地图导航map.addControl(new BMap.NavigationControl({enableGeolocation: true}));// 设置缩略图控件。map.addControl(new BMap.OverviewMapControl());// 设置地图显示的城市 此项是必须设置的map.setCurrentCity("上海");/*拖拽事件，更新范围内房源* 获取中心点，取数据，更新地图* */let showInfo = () => {let cp = map.getCenter();let zoom = map.getZoom(); //缩放级别// console.log(cp.lng + "," + cp.lat+" --> " + zoom);client.query({query: GET_MAP_HOUSE, variables: {"lng":cp.lng,"lat":cp.lat,"zoom":zoom}}).then(result =>{let xys = result.data.MapHouseData.list;showMapMarker(xys,map);});}map.addEventListener("dragstart",()=>{map.clearOverlays();}); //拖动开始事件map.addEventListener("dragend",showInfo); //拖动结束事件map.addEventListener("zoomstart", ()=>{map.clearOverlays();}); //缩放开始事件map.addEventListener("zoomend",showInfo); //缩放结束事件/*初始化*/client.query({query: GET_MAP_HOUSE,variables: {"lng":defaultX,"lat":defaultY,"zoom":defaultZoom}}).then(result =>{let xys = result.data.MapHouseData.list;showMapMarker(xys,map)});}render() {return ( <div className = 'map-house' ><div className = "map-house-title"><Icon onClick = {this.props.hideMap} name = 'angle left' size = 'large'/> 地图找房 </div> <div className = "map-house-content" id='allmap'></div></div>);}
}
export default MapHouse;

MongoDB的地理位置索引

在MongoDB中，支持存储位置的经纬度，可以对其索引，通过算子操作，进行查找附近的数据，如：查找附近的人，附近的建筑

将房源数据导入到MongoDB

进入容器
docker exec -it mongodb /bin/bash进入mongo
mongo切换数据库
use haoke创建索引
db.house.createIndex({loc:'2d'}) #为house表的loc字段创建地理2d索引
db.house.createIndex({estate:1},{unique:true}) #为house表的hid字段创建唯一索引#通过百度api查询地址的经纬度

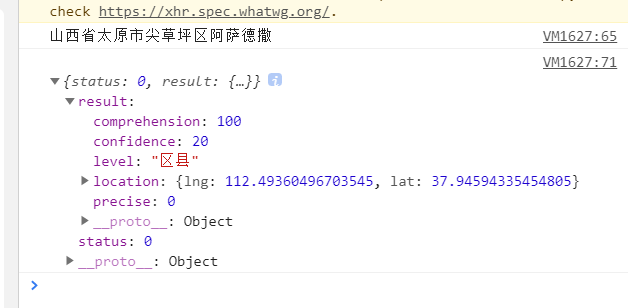

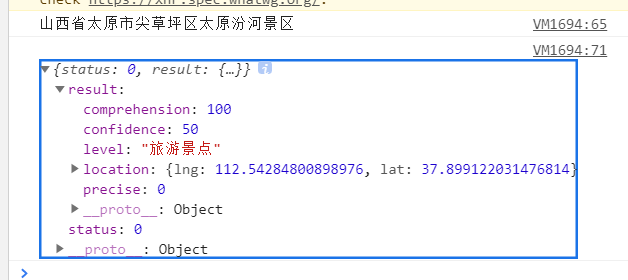

http://api.map.baidu.com/geocoding/v3/?address=上海&output=json&ak=q60ejYQeO2qZO6dYhWPOHea4aY0bhrqG&callback=showLocation插入数据
db.house.insert({hid:1,title:'整租 · 南丹大楼 1居室 7500',loc:[121.4482236974557,31.196523937504549]})
db.house.insert({hid:2,title:'陆家嘴板块，精装设计一室一厅，可拎包入住诚意租。',loc:[121.51804613891443,31.238878702131506]})
db.house.insert({hid:3,title:'整租 · 健安坊 1居室 4050',loc:[121.4148310693774,31.16507733043528]})
db.house.insert({hid:4,title:'整租 · 中凯城市之光+视野开阔+景色秀丽+拎包入住',loc:[121.43528282056717,31.198687949417815]})
db.house.insert({hid:5,title:'整租 · 南京西路品质小区 21213三轨交汇 配套齐* 拎包入住',loc:[121.43528282056717,31.198687949417815]})
db.house.insert({hid:6,title:'祥康里 简约风格 *南户型 拎包入住 看房随时',loc:[121.47521508401232,31.23859308719981]})
db.house.insert({hid:7,title:'整租 · 桃源新村 1室0厅 5500元',loc:[121.488377804633,31.23113867155927]})
db.house.insert({hid:8,title:'整租 · 中山公园品质小区，两房朝南厅朝南，家电家具精装*配',loc:[121.42038642151562,31.225078800208654]})
db.house.insert({hid:9,title:'整租 · 近地铁2号线，精装1房1厅，高区朝南，享受阳光好房',loc:[121.42933310871683,31.221943586471036]})
db.house.insert({hid:10,title:'整租 · 2.3.4号中山公园地铁，背靠来福士，采光好，诚意出租',loc:[121.42063977421182,31.221023374982044]})

mongodb地理位置的索引

注意距离要除以111.2（1度=111.2km），跟普通查找的区别仅仅是多了两个算子 \\$near 和 \\$maxDistance

#查询上海人民广场附近5公里的房源，人民广场的坐标为：121.48130241985999,31.235156971414239> db.house.find({loc:{$near:[121.48130241985999,31.235156971414239],$maxDistance:5/111.12 }})
{ "_id" : ObjectId("606e6eb7c34903ae9b73d0dd"), "hid" : 6, "title" : "祥康里 简约风格 *南户型 拎包入住 看房随时", "loc" : [ 121.47521508401232, 31.23859308719981 ] }
{ "_id" : ObjectId("606e6ebfc34903ae9b73d0de"), "hid" : 7, "title" : "整租 · 桃源新村 1室0厅 5500元", "loc" : [ 121.488377804633, 31.23113867155927 ] }
{ "_id" : ObjectId("606e6e95c34903ae9b73d0d9"), "hid" : 2, "title" : "陆家嘴板块，精装设计一室一厅，可拎包入住诚意租。", "loc" : [ 121.51804613891443, 31.238878702131505 ] }#查询上海中山公园附近2公里的房源，中山公园的坐标为：121.42261657004589,31.229111410235285
> db.house.find({loc:{$near:[121.42261657004589,31.229111410235285],$maxDistance:2/111.12 }})
{ "_id" : ObjectId("606e6ec3c34903ae9b73d0df"), "hid" : 8, "title" : "整租 · 中山公园品质小区，两房朝南厅朝南，家电家具精装*配", "loc" : [ 121.42038642151562, 31.225078800208653 ] }
{ "_id" : ObjectId("606e6ecdc34903ae9b73d0e1"), "hid" : 10, "title" : "整租 · 2.3.4号中山公园地铁，背靠来福士，采光好，诚意出租", "loc" : [ 121.42063977421182, 31.221023374982042 ] }
{ "_id" : ObjectId("606e6ec8c34903ae9b73d0e0"), "hid" : 9, "title" : "整租 · 近地铁2号线，精装1房1厅，高区朝南，享受阳光好房", "loc" : [ 121.42933310871683, 31.221943586471035 ] }

【Java项目】好客租房——前台分析

【Java项目】好客租房——前台分析

实现基于MongoDB的查询

mongo依赖

<!--mongo依赖-->
<dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-data-mongodb</artifactId>
</dependency>

配置文件

#mongodb配置
spring.data.mongodb.uri=mongodb://8.140.130.91:6379:27017/haoke

Mapper层代码

pojo
package com.haoke.api.pojo;@Data
@AllArgsConstructor
@NoArgsConstructor
@Document(collection = "house")//指定表名称
@Builder
public class MongoHouse {@Id@JsonSerialize(using = ToStringSerializer.class)private ObjectId id;private Long hid;private String title;private Float[] loc;
}
service
package com.haoke.api.service;@Service
public class MongoHouseService {public static final Map<Integer, Double> BAIDU_ZOOM = new HashMap<>();static {BAIDU_ZOOM.put(19, 20d / 1000); //单位为kmBAIDU_ZOOM.put(18, 50d / 1000);BAIDU_ZOOM.put(17, 100d / 1000);BAIDU_ZOOM.put(16, 200d / 1000);BAIDU_ZOOM.put(15, 500d / 1000);BAIDU_ZOOM.put(14, 1d);BAIDU_ZOOM.put(13, 2d);BAIDU_ZOOM.put(12, 5d);BAIDU_ZOOM.put(11, 10d);BAIDU_ZOOM.put(10, 20d);BAIDU_ZOOM.put(9, 25d);BAIDU_ZOOM.put(8, 50d);BAIDU_ZOOM.put(7, 100d);BAIDU_ZOOM.put(6, 200d);BAIDU_ZOOM.put(5, 500d);BAIDU_ZOOM.put(4, 1000d);BAIDU_ZOOM.put(3, 2000d);BAIDU_ZOOM.put(2, 5000d);BAIDU_ZOOM.put(1, 10000d);}@Autowiredprivate MongoTemplate mongoTemplate;/ 从mongo中产讯数据，返回地图房源数据* */public MapHouseDataResult queryHouseData(Float lng,Float lat,Integer zoom){double distance = BAIDU_ZOOM.get(zoom)*1.5/111.12;Query query = Query.query(Criteria.where("loc").near(new Point(lng,lat)).maxDistance(distance));//查询数据List<MongoHouse> mongoHouses = this.mongoTemplate.find(query, MongoHouse.class);List<MapHouseXY> list = new ArrayList<>();for (MongoHouse mongoHouse : mongoHouses) {list.add(new MapHouseXY(mongoHouse.getLoc()[0], mongoHouse.getLoc()[1]));}return new MapHouseDataResult(list);}
}

接口实现

package com.haoke.api.graphql.myDataFetcherImpl;@Component
public class MapHouseDataFetcher implements MyDataFetcher {@Autowiredprivate MongoHouseService mongoHouseService;@Overridepublic String fieldName() {return "MapHouseData";}@Overridepublic Object dataFetcher(DataFetchingEnvironment environment) {Float lat = ((Double)environment.getArgument("lat")).floatValue();Float lng = ((Double)environment.getArgument("lng")).floatValue();Integer zoom = environment.getArgument("zoom");System.out.println("lat -> "+ lat);return this.mongoHouseService.queryHouseData(lng,lat,zoom);}
}

小程序用户登录

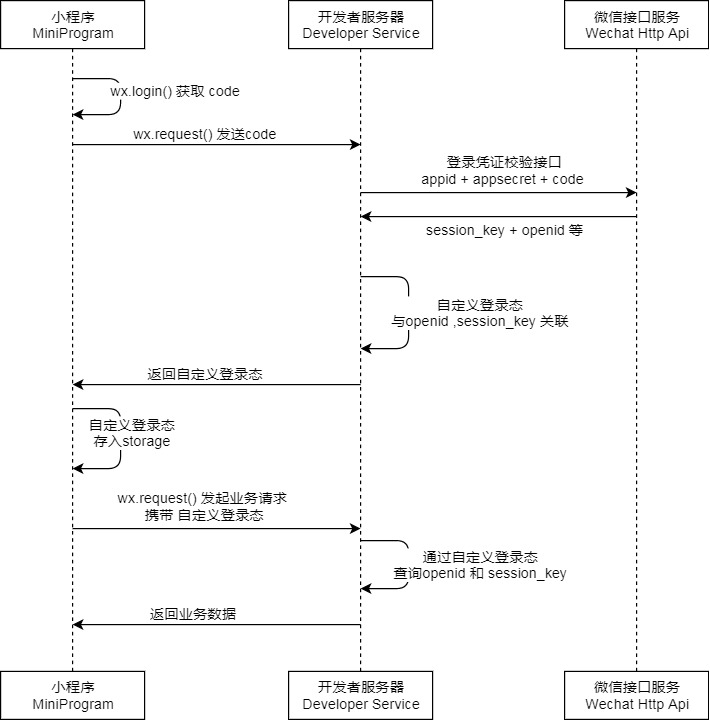

在这里插入图片描述

  1. 调用 wx.login() 获取 临时登录凭证code ,并回传到开发者服务器

    wx.login()[https://developers.weixin.qq.com/miniprogram/dev/api/open-api/login/wx.login.html]

  2. 调用 code2Session 接口，换取 用户唯一标识 OpenId 和 会话密钥 session_key

    • 用户在当前小程序的唯一标识（openid）

    • 微信开放平台帐号下的唯一标识（unionid，若当前小程序已绑定到微信开放平台帐号）

    • 本次登录的会话密钥（session_key）

注意

  1. 会话密钥 session_key 是对用户数据进行 [加密签名][https://developers.weixin.qq.com/miniprogram/dev/framework/open-ability/signature.html] 的密钥。为了应用自身的数据安全，开发者服务器 不应该把会话密钥下发到小程序，也不应该对外提供这个密钥
  2. 临时登录凭证 code 只能使用一次

编写登录服务

1. wx.login()获取code

<view class="container"><button bindtap="login">登录</button>
</view>Page({login(){wx.login({success(res){if(res.code){console.log(res.code)}}})}
})

2. 从微信服务器获取用户相关信息

请求微信的API地址[https://developers.weixin.qq.com/miniprogram/dev/api-backend/open-api/login/auth.code2Session.html]

GET https://api.weixin.qq.com/sns/jscode2session?
appid=APPID&secret=SECRET&js_code=JSCODE&grant_type=authorization_code

返回值示例

{"session_key": "y/tucPVvjeLvKwayZqE8cA==","openid": "o4Grc5fzn_KKpmOXZeQ-E2bMboLg"
}---
{"errcode": 40163,"errmsg": "code been used, hints: [ req_id: ZEmBy24ce-iV.NGA ]"
}---
{"errcode": 40029,"errmsg": "invalid code, hints: [ req_id: ZEmBN.iCe-yFGI4a ]"
}

3. Bean——RestTemplate、JAVA的HTTP工具类

package com.haoke.api.config;import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;/*
* 杂配置
* */
@Configuration
public class HaokeConfig {@Beanpublic RestTemplate restTemplate(){return new RestTemplate();}
}

4. Controller

package com.haoke.api.controller;import org.apache.commons.codec.digest.DigestUtils;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.RedisTemplate;import org.springframework.web.bind.annotation.*;
import org.springframework.web.client.RestTemplate;import java.time.Duration;
import java.util.HashMap;
import java.util.Map;@RequestMapping("wx")
@RestController
public class WxLoginController {@Autowiredprivate RestTemplate restTemplate;@Autowiredprivate RedisTemplate<String ,String > redisTemplate;@PostMapping("login")public Map<String,Object> wxLogin(@RequestBody HashMap<String, String> param){Map<String,Object> result = new HashMap<>();result.put("status","200");String appid = "wx47b56adca7411314";String secret = "2b68f0eb4c8ecfcbec4929f3eee5aee8";String url = "https://api.weixin.qq.com/sns/jscode2session?" +"appid="+ appid +"&secret="+ secret +"&js_code="+param.get("code")+"&grant_type=authorization_code";String resData = this.restTemplate.getForObject(url,String.class);if(StringUtils.contains(resData,"errcode")){//登录失败result.put("status","500");result.put("msg","登录失败");return result;}String ticket = DigestUtils.md5Hex(resData);String redisKey = "WX_MINIPRO_LOGIN"+ticket;//保存七天this.redisTemplate.opsForValue().set(redisKey,resData, Duration.ofDays(7));result.put("data",ticket);return result;}
}

5. session是否失效

wx.checkSession(Object object)

用户越久未使用小程序，用户登录态越有可能失效。反之如果用户一直在使用小程序，则用户登录态一直保持有效。

checkLogin(){const _this = thiswx.checkSession({success: (res) => {// session_key 未过期，并且在本生命周期一直有效wx.showToast({title: '处于登录状态',icon: 'success',duration: 2000});},fail() {wx.showToast({title: '登录已失效!',icon: 'none',duration: 2000});_this.login() // 重新登录}})
},

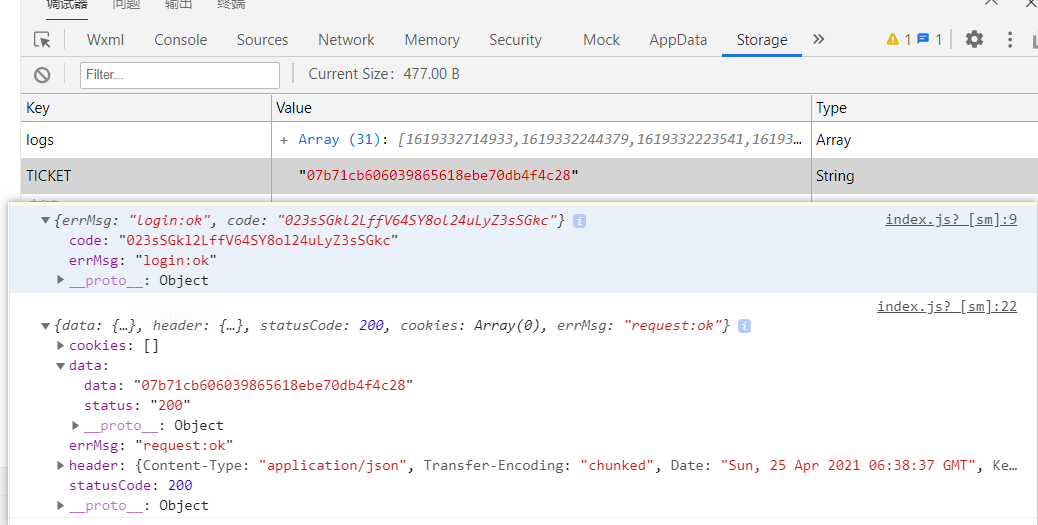

6. 登录测试

login(){wx.login({success(res){console.log(res)if(res.code){//发送临时凭证code，向服务端请求用户标识wx.request({url: 'http://127.0.0.1:9091/wx/login',method:"POST",header:{"content-type":"application/json"},data: {code: res.code},success(res){console.log(res)if(res.data.status == 200){wx.setStorage({key: 'TICKET',data: res.data.data});wx.showToast({title: '登录成功',icon: 'success',duration: 2000});}else{wx.removeStorage({key: 'TICKET'});wx.showToast({title: '登录失败!',icon: 'none',duration: 2000})}}})}}})
}

【Java项目】好客租房——前台分析

插件

wx-jq: wx-jq一套完全原创的微信小程序插件集合库,微信小程序插件,wx-jq (gitee.com)

WebMagic & 房源搜索

WebMagic是一个简单灵活的Java爬虫框架。基于WebMagic，你可以快速开发出一个高效、易维护的爬虫。

【Java项目】好客租房——前台分析

  • 简单的API，可快速上手
  • 模块化的结构，可轻松扩展
  • 提供多线程和分布式支持

使用WebMagic 抓取数据

0. 爬虫流程

  1. 访问列表页面，将当前列表页的房源详情页面添加到 list ，作为待爬取页面

    • 列表页

      【Java项目】好客租房——前台分析

    • 当前列表的详情页链接

      【Java项目】好客租房——前台分析

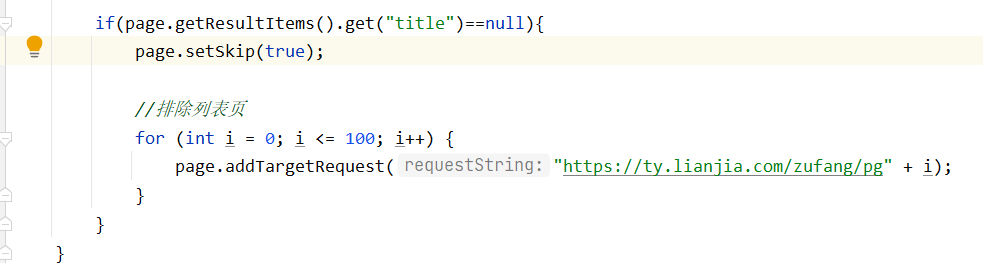

  2. 将其余列表页放入到待爬取链接 list 中

    【Java项目】好客租房——前台分析

    WebMagic 内部有去重操作，已爬取过的页面不做重复操作

  3. 去详情页面爬取信息

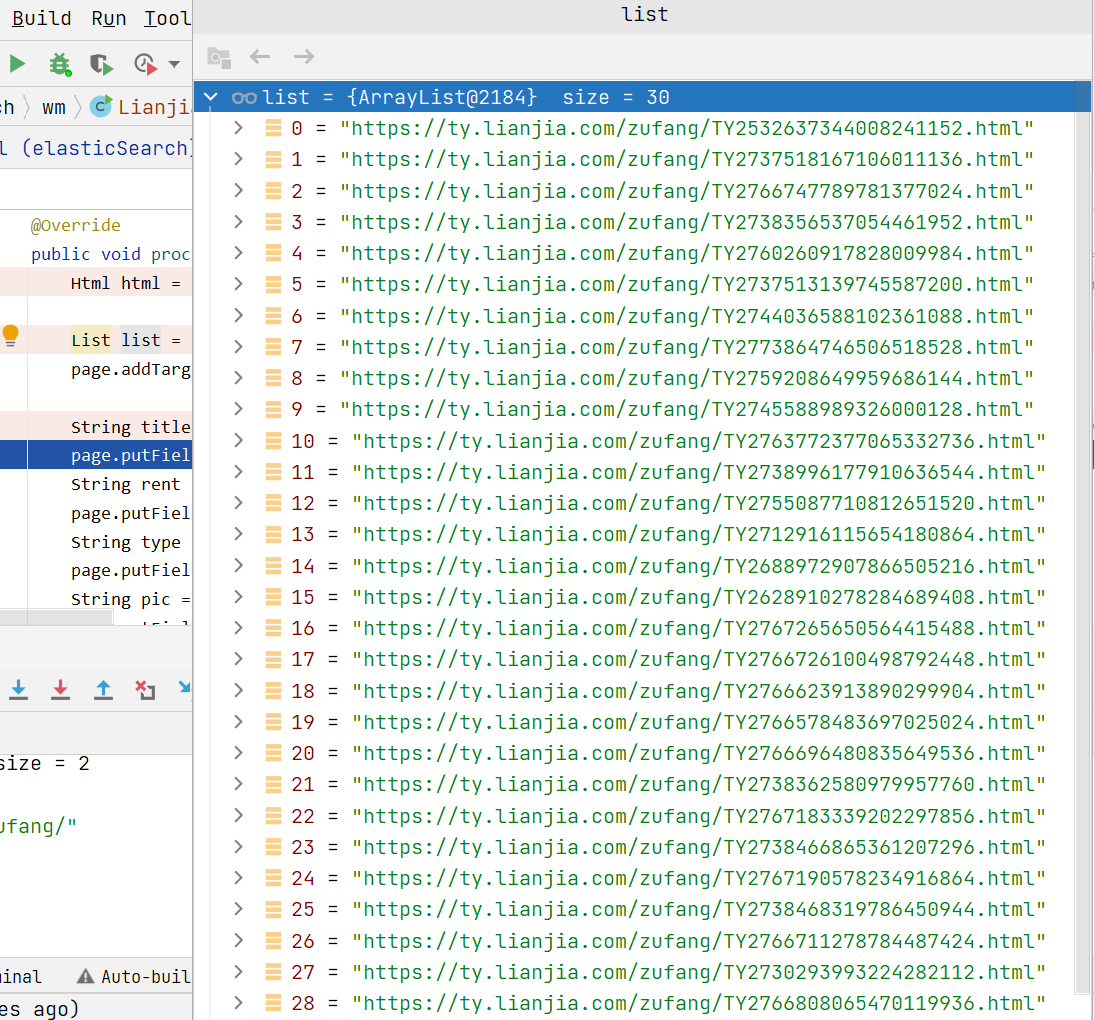

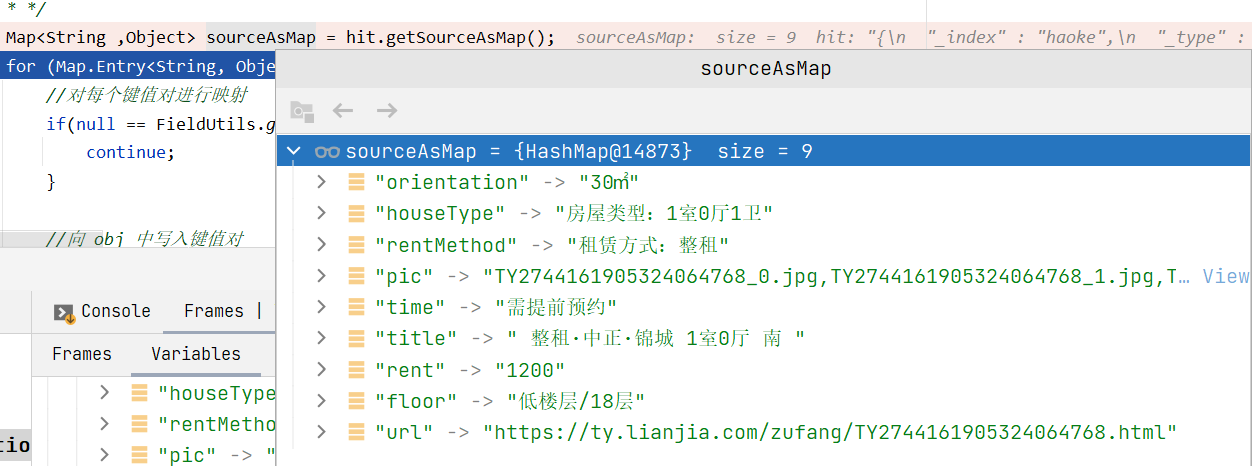

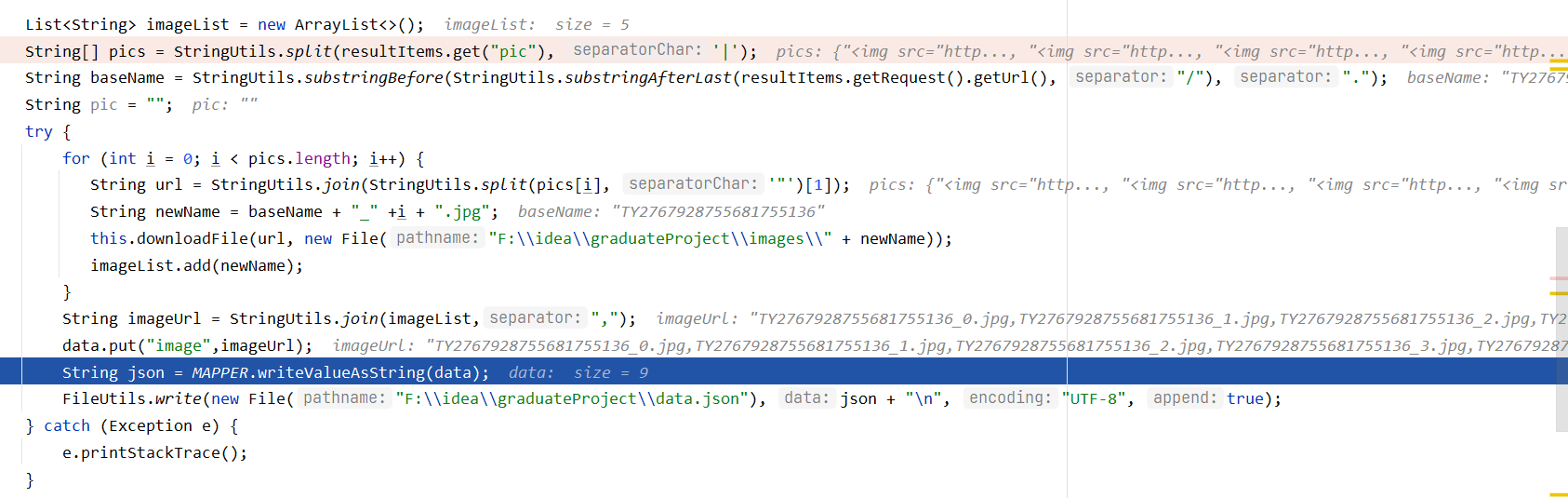

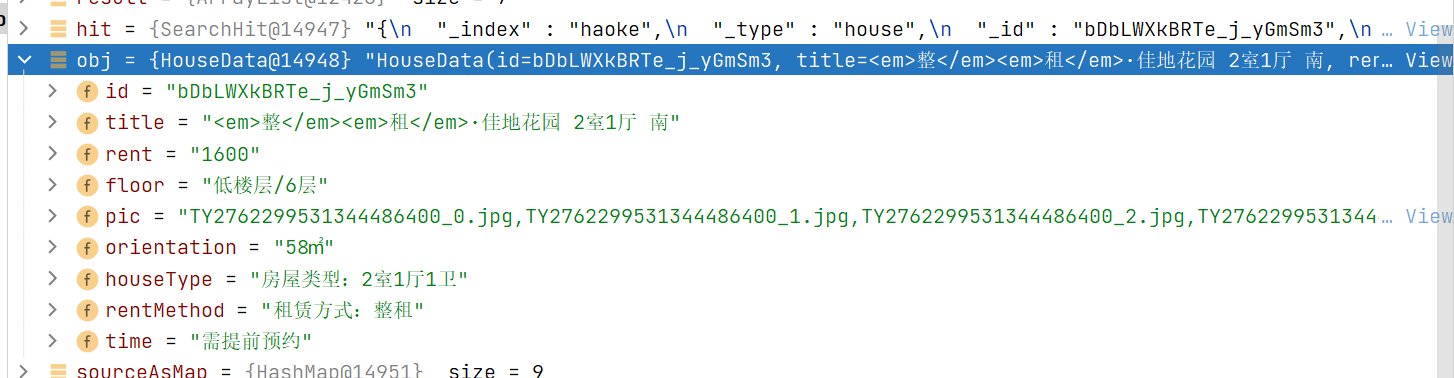

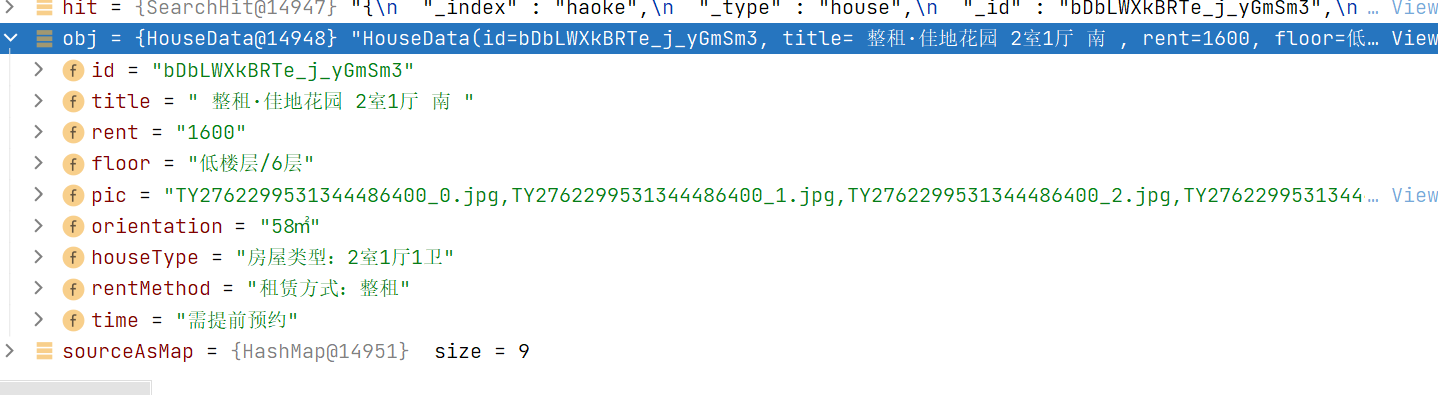

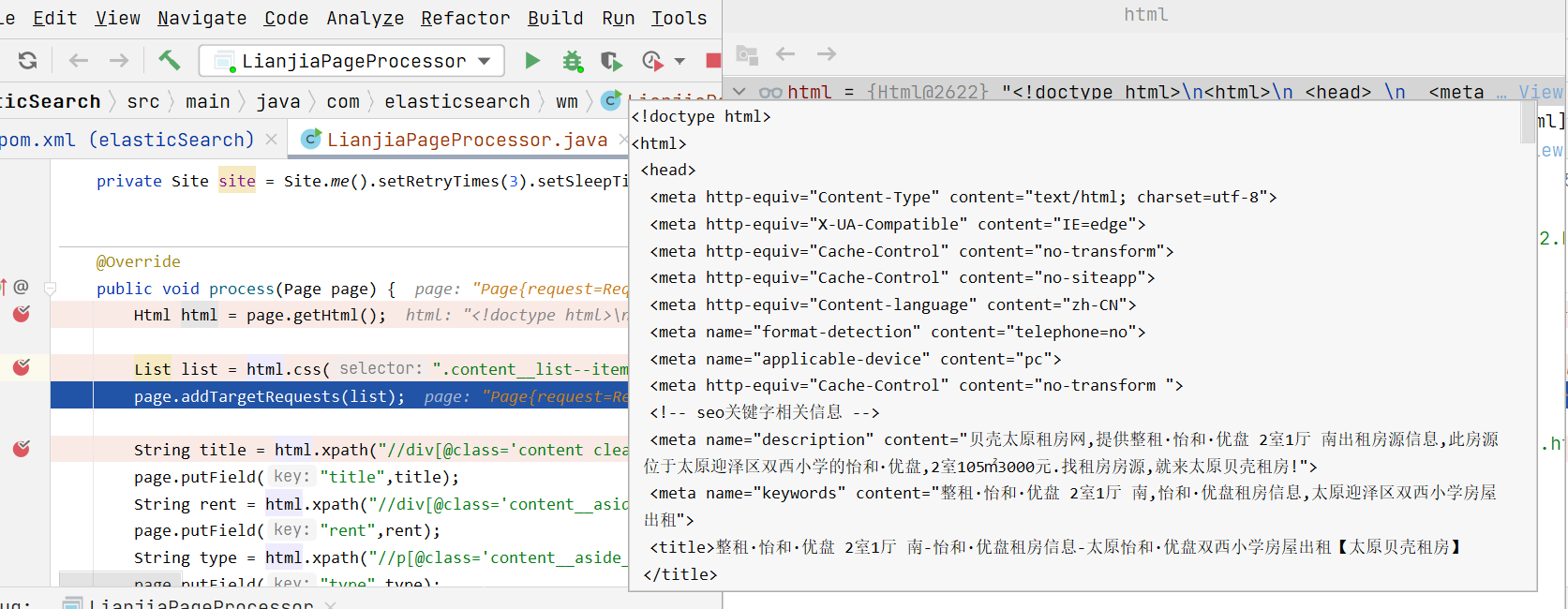

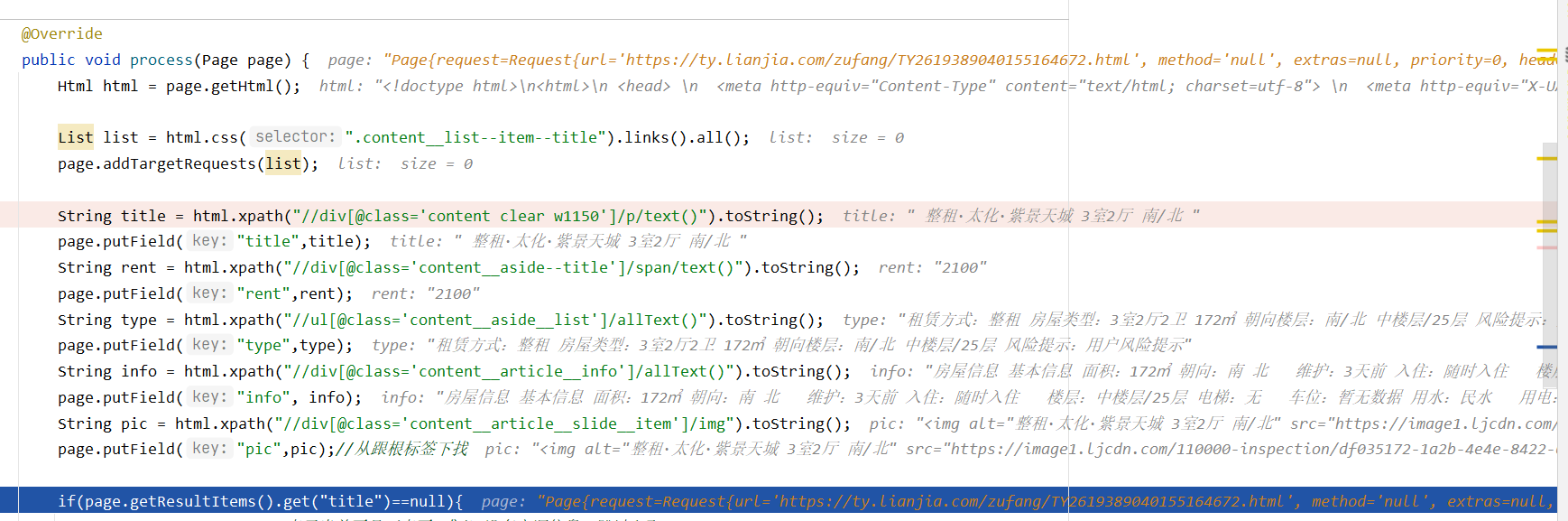

    • 调试查看变量

      【Java项目】好客租房——前台分析

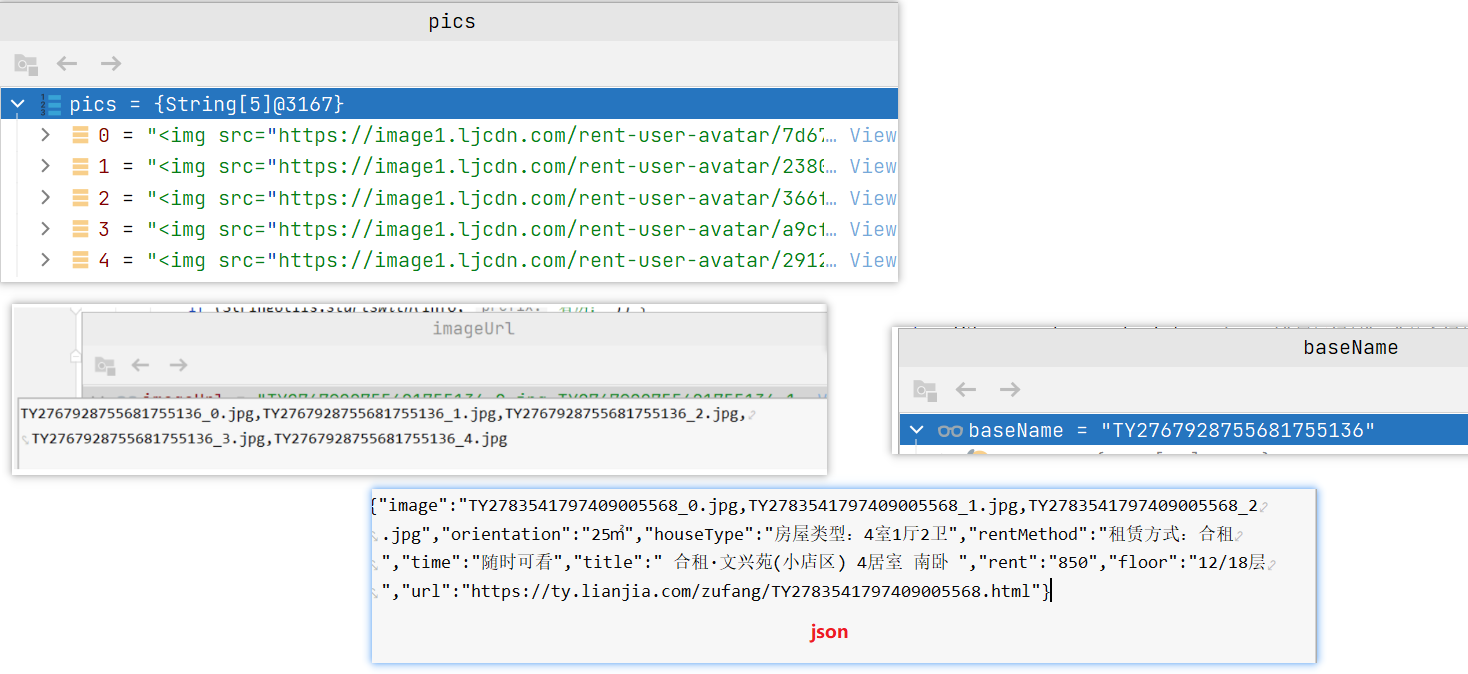

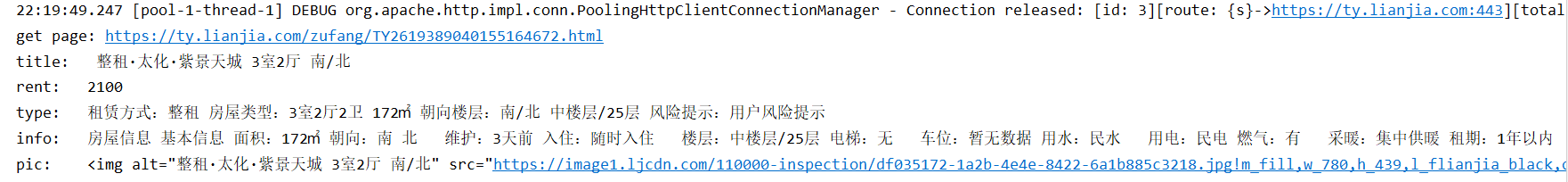

    • 对应的控制台输出

      【Java项目】好客租房——前台分析

    信息被存在 page 变量中，默认是输出到控制台，可以编写 Pipeline 对 page 自行处理

    1. 当 LianjiaPageProcessor.process() 方法处理后，会调用 MyPipeline 进行处理

      【Java项目】好客租房——前台分析
      【Java项目】好客租房——前台分析

      【Java项目】好客租房——前台分析

1. 导入依赖

<dependency><groupId>us.codecraft</groupId><artifactId>webmagic-core</artifactId><version>0.7.4</version>
</dependency>
<dependency><groupId>us.codecraft</groupId><artifactId>webmagic-extension</artifactId><version>0.7.4</version>
</dependency>
<dependency><groupId>commons-io</groupId><artifactId>commons-io</artifactId><version>2.6</version>
</dependency>

2. 爬取逻辑

package com.elasticsearch.wm;import us.codecraft.webmagic.Page;
import us.codecraft.webmagic.Site;
import us.codecraft.webmagic.Spider;
import us.codecraft.webmagic.processor.PageProcessor;
import us.codecraft.webmagic.selector.Html;import java.util.List;/*
* 1. 获取爬取的链接
* 2. 从目标网页上获取信息
* 3. 拼接从网页上获取的信息
* 4. 将数据存储到JSON文件，将图片存储到指定文件夹
* */
public class LianjiaPageProcessor implements PageProcessor {private Site site = Site.me().setRetryTimes(3).setSleepTime(200);@Overridepublic void process(Page page) {Html html = page.getHtml();List list = html.css(".content__list--item--title").links().all();page.addTargetRequests(list);String title = html.xpath("//div[@class='content clear w1150']/p/text()").toString();page.putField("title",title);String rent = html.xpath("//div[@class='content__aside--title']/span/text()").toString();page.putField("rent",rent);String type = html.xpath("//ul[@class='content__aside__list']/allText()").toString();page.putField("type",type);String pic = html.xpath("//div[@class='content__article__slide__item']/img").toString();page.putField("pic",pic);//从根标签下找if(page.getResultItems().get("title")==null){page.setSkip(true);//表示当前页是列表页 或者 没有房源信息，跳过爬取//排除列表页for (int i = 0; i <= 100; i++) {page.addTargetRequest("https://ty.lianjia.com/zufang/pg" + i);}}}@Overridepublic Site getSite() {return site;}public static void main(String[] args) {Spider.create(new LianjiaPageProcessor()).addUrl("https://ty.lianjia.com/zufang/").thread(1).addPipeline(new MyPipeline())//对爬取到信息的自定义处理.run();}
}

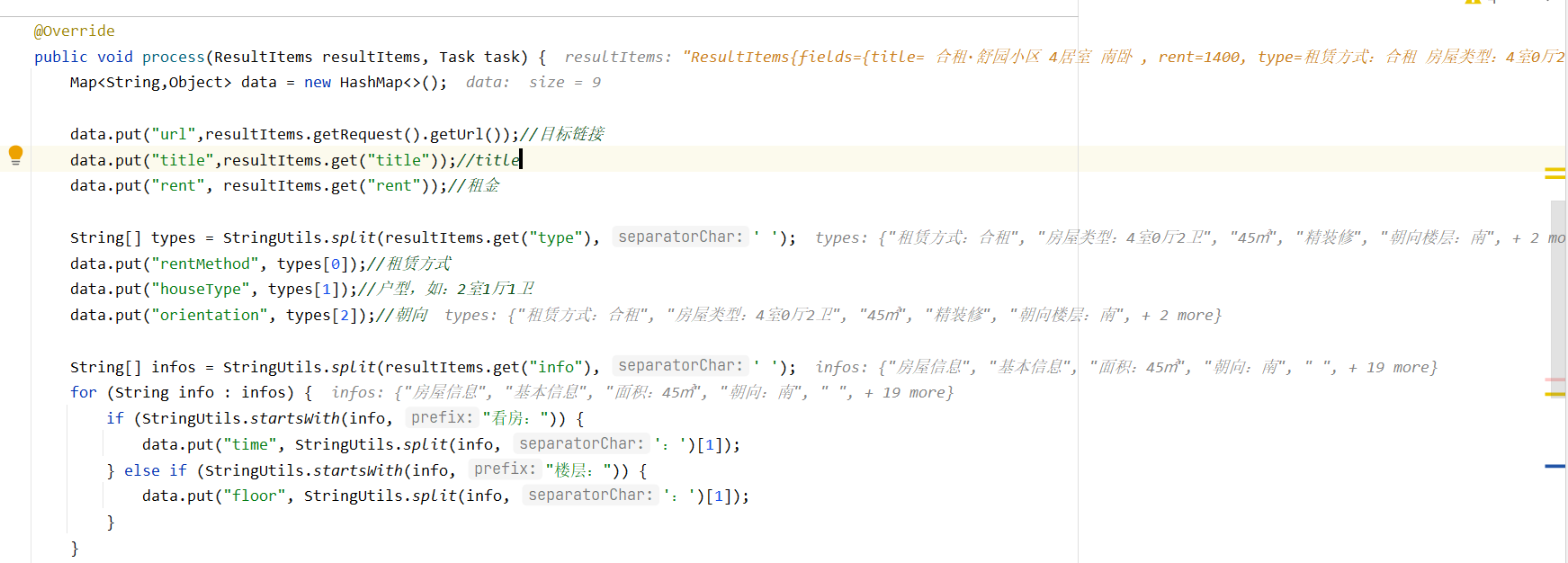

3. MyPipeline对信息处理

package com.elasticsearch.wm;import com.fasterxml.jackson.databind.ObjectMapper;
import org.apache.commons.io.FileUtils;
import org.apache.commons.io.IOUtils;
import org.apache.commons.lang3.StringUtils;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.impl.client.HttpClientBuilder;
import us.codecraft.webmagic.ResultItems;
import us.codecraft.webmagic.Task;
import us.codecraft.webmagic.pipeline.Pipeline;import java.io.File;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;/* @author Auspice Tian* @time 2021-05-10 22:11* @current elasticSearch-com.elasticsearch.wm*/
public class MyPipeline implements Pipeline {private static final ObjectMapper MAPPER = new ObjectMapper();@Overridepublic void process(ResultItems resultItems, Task task) {Map<String,Object> data = new HashMap<>();data.put("url",resultItems.getRequest().getUrl());//目标链接data.put("title",resultItems.get("title"));//titledata.put("rent", resultItems.get("rent"));//租金String[] types = StringUtils.split(resultItems.get("type"), ' ');data.put("rentMethod", types[0]);//租赁方式data.put("houseType", types[1]);//户型，如：2室1厅1卫data.put("orientation", types[2]);//朝向String[] infos = StringUtils.split(resultItems.get("info"), ' ');for (String info : infos) {if (StringUtils.startsWith(info, "看房：")) {data.put("time", StringUtils.split(info, '：')[1]);} else if (StringUtils.startsWith(info, "楼层：")) {data.put("floor", StringUtils.split(info, '：')[1]);}}List<String> imageList = new ArrayList<>();String[] pics = StringUtils.split(resultItems.get("pic"), '|');String baseName = StringUtils.substringBefore(StringUtils.substringAfterLast(resultItems.getRequest().getUrl(), "/"), ".");String pic = "";try {for (int i = 0; i < pics.length; i++) {String url = StringUtils.join(StringUtils.split(pics[i], '"')[1]);String newName = baseName + "_" +i + ".jpg";this.downloadFile(url, new File("F:\\\\idea\\\\graduateProject\\\\images\\\\" + newName));imageList.add(newName);}String imageUrl = StringUtils.join(imageList,",");data.put("image",imageUrl);String json = MAPPER.writeValueAsString(data);FileUtils.write(new File("F:\\\\idea\\\\graduateProject\\\\data.json"), json + "\\n", "UTF-8", true);} catch (Exception e) {e.printStackTrace();}}/* 下载文件* @param url 文件url* @param dest 目标目录*/public void downloadFile(String url, File dest) throws Exception {HttpGet httpGet = new HttpGet(url);CloseableHttpResponse response = HttpClientBuilder.create().build().execute(httpGet);try {FileUtils.writeByteArrayToFile(dest, IOUtils.toByteArray(response.getEntity().getContent()));} finally {response.close();}}
}

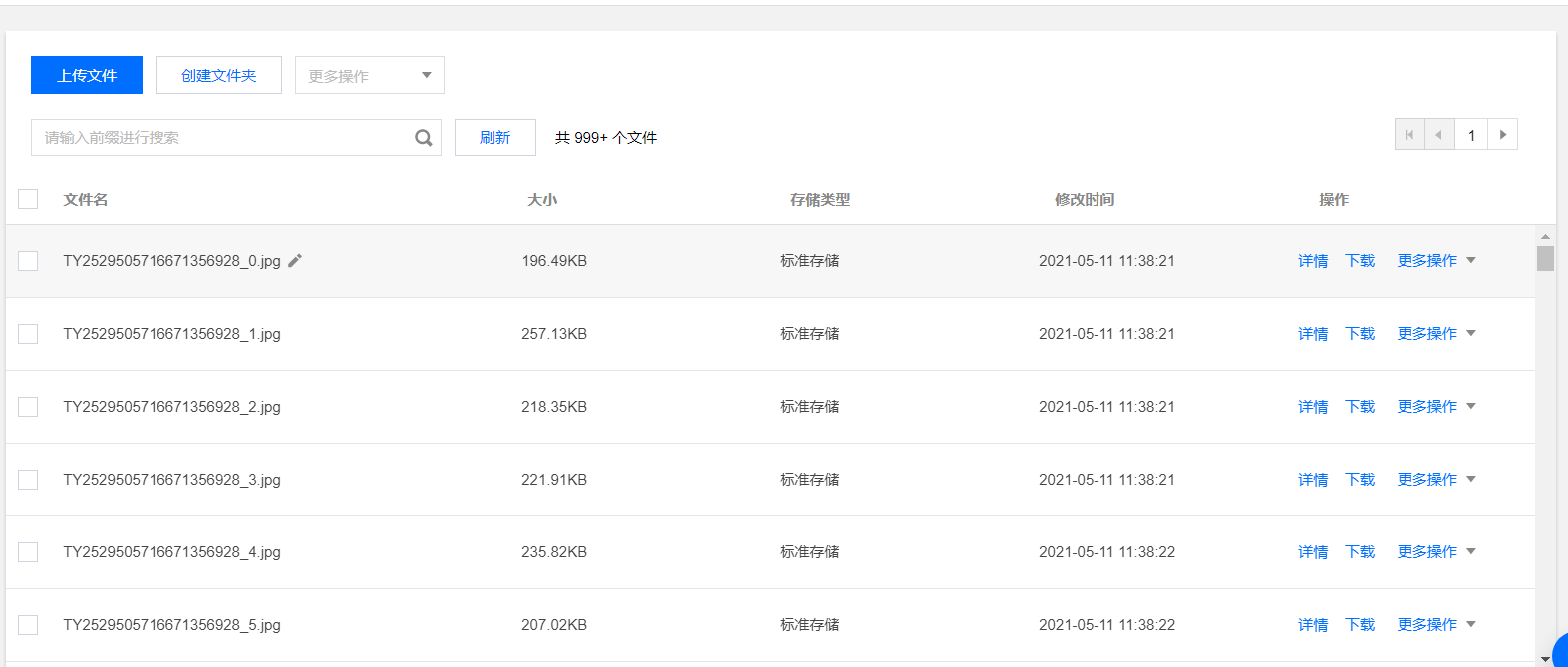

4. 将图片上传到COS

【Java项目】好客租房——前台分析

将数据导入ES

1. 设置ik分词器

cd /data/es-cluster-data/ik
# 将IK的zip压缩包解压到该目录# 停止、删除现有容器
docker stop es-node01 es-node02 es-node03
docker rm es-node01 es-node02 es-node03# 重新创建容器，挂在ik目录
docker create --name es-node01 --net host -v /data/es-cluster-data/node01/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml -v /data/es-cluster-data/node01/jvm.options:/usr/share/elasticsearch/config/jvm.options -v /data/es-cluster-data/ik:/usr/share/elasticsearch/plugins/ik -v /data/es-cluster-data/node01/data:/usr/share/elasticsearch/data elasticsearch:6.5.4docker create --name es-node02 --net host -v /data/es-cluster-data/node02/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml -v /data/es-cluster-data/node02/jvm.options:/usr/share/elasticsearch/config/jvm.options -v /data/es-cluster-data/ik:/usr/share/elasticsearch/plugins/ik -v /data/es-cluster-data/node02/data:/usr/share/elasticsearch/data elasticsearch:6.5.4docker create --name es-node03 --net host -v /data/es-cluster-data/node03/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml -v /data/es-cluster-data/node03/jvm.options:/usr/share/elasticsearch/config/jvm.options -v /data/es-cluster-data/ik:/usr/share/elasticsearch/plugins/ik -v /data/es-cluster-data/node03/data:/usr/share/elasticsearch/data elasticsearch:6.5.4

测试ik分词器

POST http://8.140.130.91:9200/_analyze{"analyzer": "ik_max_word","text": "我是中国人"
}{"tokens": [{"token": "我","start_offset": 0,"end_offset": 1,"type": "CN_CHAR","position": 0},{"token": "是","start_offset": 1,"end_offset": 2,"type": "CN_CHAR","position": 1},{"token": "中国人","start_offset": 2,"end_offset": 5,"type": "CN_WORD","position": 2},{"token": "中国","start_offset": 2,"end_offset": 4,"type": "CN_WORD","position": 3},{"token": "国人","start_offset": 3,"end_offset": 5,"type": "CN_WORD","position": 4}]
}

2. 文档mapping

# 新建索引
PUT http://8.140.130.91:9200/haoke{"settings": {"index": {"number_of_shards": 6,"number_of_replicas": 1}},"mappings": {"house": {"dynamic": false,"properties": {"title": {"type": "text","analyzer": "ik_max_word"},"pic": {"type": "keyword","index": false},"orientation": {"type": "keyword","index": false},"houseType": {"type": "keyword","index": false},"rentMethod": {"type": "keyword","index": false},"time": {"type": "keyword","index": false},"rent": {"type": "keyword","index": false},"floor": {"type": "keyword","index": false}}}}
}
  • dynamic
    • 参数来控制字段的新增
    • true：默认值，表示允许自动新增字段
    • false：不允许自动新增字段，但文档可以正常写入，但无法对字段进行查询
    • strict：严格模式，文档不能写入，报错
  • index
    • 控制当前字段是否被索引，默认为 true，false表示不记录，即不可被搜索

【Java项目】好客租房——前台分析

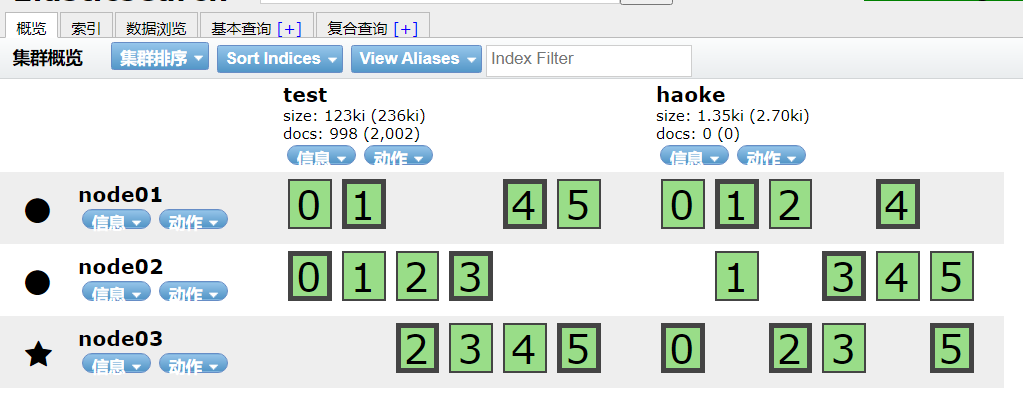

3. 测试ES集群

新增数据

POST http://8.140.130.91:9200/haoke/house{"pic": "TY2760703226025353216_0.jpg,TY2760703226025353216_1.jpg,TY2760703226025353216_2.jpg,TY2760703226025353216_3.jpg,TY2760703226025353216_4.jpg","orientation": "30㎡","houseType": "房屋类型：4室0厅2卫","rentMethod": "租赁方式：合租","time": "随时可看","title": " 合租·翰府 4居室 西卧 ","rent": "800","floor": "4/25层","url": "https://ty.lianjia.com/zufang/TY2760703226025353216.html"
}

【Java项目】好客租房——前台分析

测试搜索

POST http://8.140.130.91:9200/haoke/house/_search{"query": {"match": {"title": {"query": "合租"}}},"highlight": {"fields": {"title": {}}}
}{"took": 54,"timed_out": false,"_shards": {"total": 6,"successful": 6,"skipped": 0,"failed": 0},"hits": {"total": 1,"max_score": 0.2876821,"hits": [{"_index": "haoke","_type": "house","_id": "XTazWXkBRTe_j_yGOSnN","_score": 0.2876821,"_source": {"pic": "TY2760703226025353216_0.jpg,TY2760703226025353216_1.jpg,TY2760703226025353216_2.jpg,TY2760703226025353216_3.jpg,TY2760703226025353216_4.jpg","orientation": "30㎡","houseType": "房屋类型：4室0厅2卫","rentMethod": "租赁方式：合租","time": "随时可看","title": " 合租·翰府 4居室 西卧 ","rent": "800","floor": "4/25层","url": "https://ty.lianjia.com/zufang/TY2760703226025353216.html"},"highlight": {"title": ["<em>合租</em>·翰府 4居室 西卧"]}}]}
}

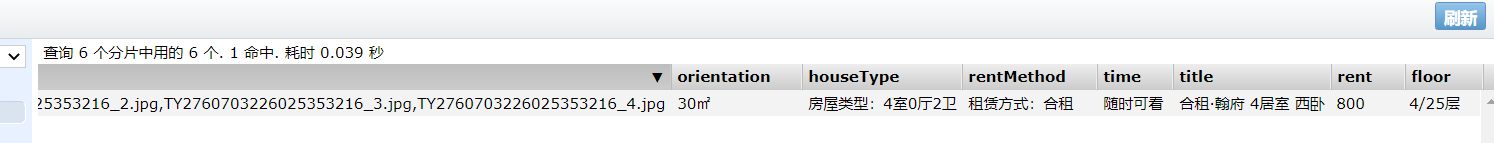

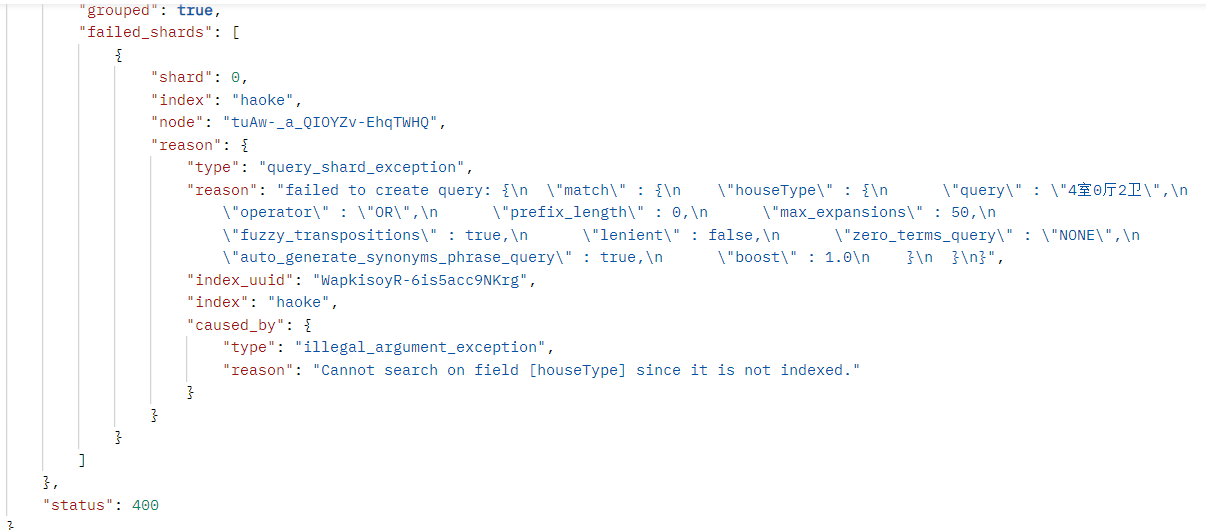

测试未被索引字段

{"query": {"match": {"houseType": {"query": "4室0厅2卫"}}},"highlight": {"fields": {"title": {}}}
}

【Java项目】好客租房——前台分析

index 被设置为false的字段不能进行搜索操作

4. 将数据批量导入ES

import org.apache.commons.io.FileUtils;
/ 批量插入数据* */
@Test
public void bulk() throws Exception{Request request = new Request("POST", "/haoke/house/_bulk");List<String> lines = FileUtils.readLines(new File("E:\\\\idea\\\\graduateProject\\\\tylj-data.json"), "UTF-8");//data.json中  每一行都是一个文档String createStr = "{\\"index\\": {\\"_index\\":\\"haoke\\",\\"_type\\":\\"house\\"}}";StringBuilder sb = new StringBuilder();int count = 0;for (String line : lines) {sb.append(createStr + "\\n" + line + "\\n");if (count >= 100) {request.setJsonEntity(sb.toString());Response response = this.restClient.performRequest(request);count = 0;sb = new StringBuilder();}count++;}
}

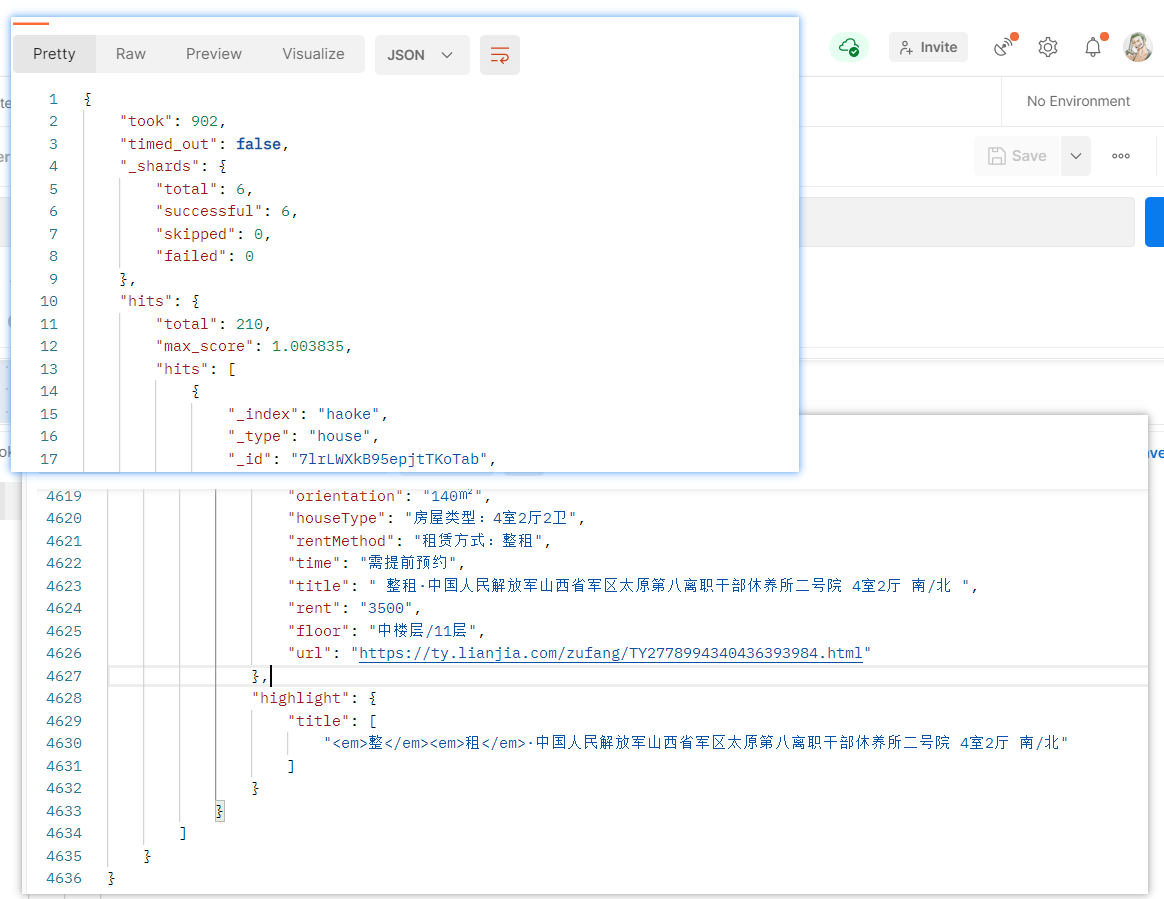

测试

POST http://8.140.130.91:9200/haoke/house/_search{"from":0,"size":300,"query": {"match": {"title": {"query": "整租"}}},"highlight": {"fields": {"title": {}}}
}

【Java项目】好客租房——前台分析

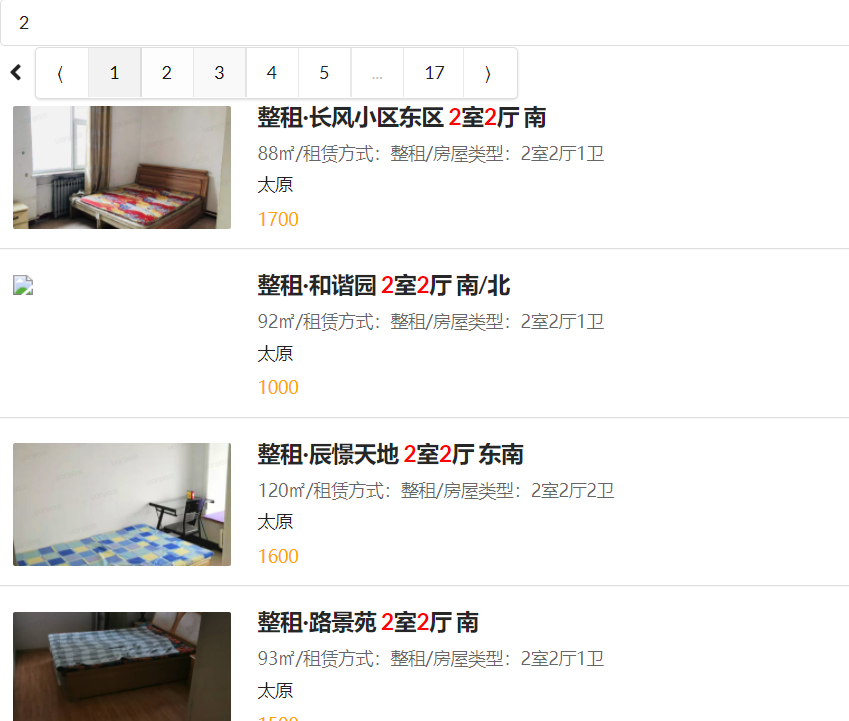

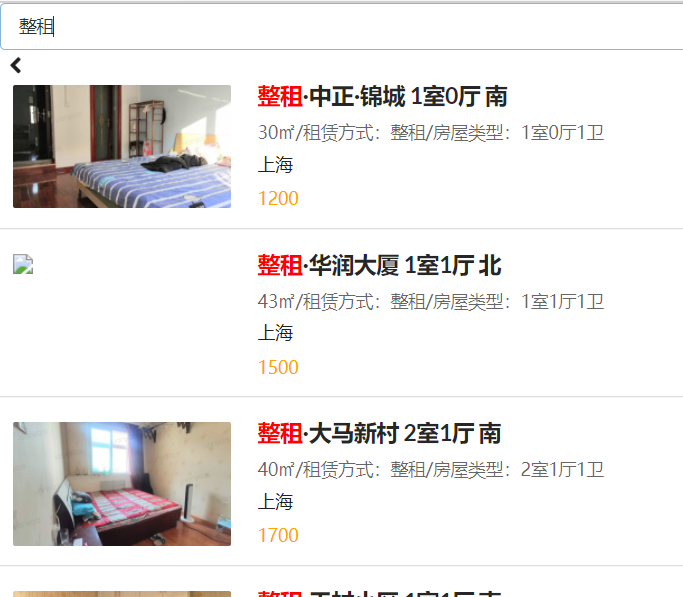

房源搜索功能

房源搜索接口

1. 导入依赖
<!--ElasticSearch依赖-->
<dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-data-elasticsearch</artifactId>
</dependency>
2. 添加配置
# elasticsearch配置
spring.data.elasticsearch.cluster-name=es-haoke-cluster
spring.data.elasticsearch.cluster-nodes=8.140.130.91:9300,8.140.130.91:9301,8.140.130.91:9302
3. 编写vo——HouseData、SearchResult
@Data
@AllArgsConstructor
@NoArgsConstructor
@Document(indexName = "haoke",type = "house",createIndex = false)
public class HouseData {@Idprivate String id;private String title;private String rent;private String floor;private String pic;private String orientation;private String houseType;private String rentMethod;private String time;
}

@Data
@AllArgsConstructor
@NoArgsConstructor
public class ESSearchResult {private Integer totalPage;private List<HouseData> list;
}
4. 编写Controller
package com.haoke.api.controller.frontController;import com.haoke.api.service.ESSearchService;
import com.haoke.api.vo.ESSearchResult;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;import javax.websocket.server.PathParam;@RestController
@RequestMapping("search")
@CrossOrigin
public class ESController {@Autowiredprivate ESSearchService esSearchService;@GetMappingpublic ESSearchResult search(@RequestParam("keyword")String keyword,@RequestParam(value = "page",defaultValue = "1")Integer page){if(page > 100){page = 1;//防止爬取过多数据}return this.esSearchService.search(keyword,page);}
}
5. 编写Service
package com.haoke.api.service;@Service
public class ESSearchService {@Autowiredprivate ElasticsearchTemplate elasticsearchTemplate;public static final Integer ROWS = 10;public ESSearchResult search(String keyword, Integer page) {PageRequest pageRequest = PageRequest.of(page-1,ROWS);SearchQuery searchQuery = new NativeSearchQueryBuilder().withQuery(QueryBuilders.matchQuery("title",keyword).operator(Operator.AND)).withPageable(pageRequest).withHighlightFields(new HighlightBuilder.Field("title")).build();AggregatedPage<HouseData> houseData = this.elasticsearchTemplate.queryForPage(searchQuery, HouseData.class);return new ESSearchResult(houseData.getTotalPages(),houseData.getContent());}
}
6. 启动

【Java项目】好客租房——前台分析

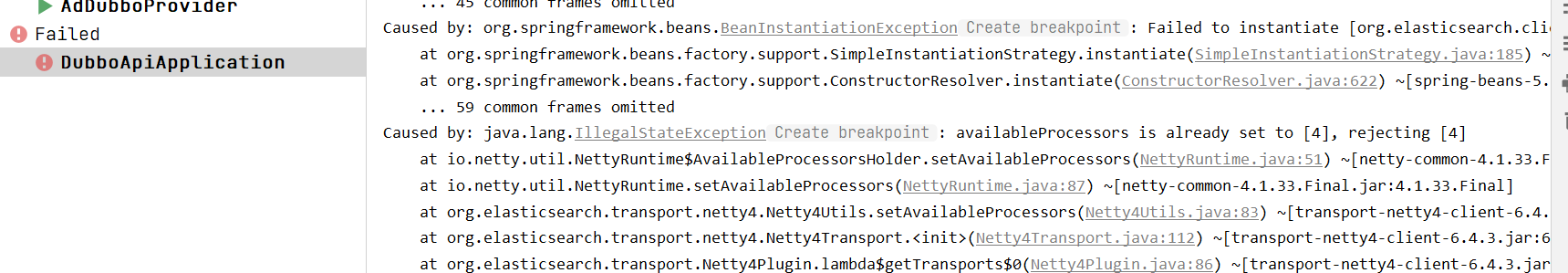

整合Redis后，引发了netty冲突，需要在启动类中加入

package com.haoke.api;@SpringBootApplication(exclude = {DataSourceAutoConfiguration.class})
public class DubboApiApplication {public static void main(String[] args) {System.setProperty("es.set.netty.runtime.available.processors","false");SpringApplication.run(DubboApiApplication.class, args);}
}
7. 测试
GET http://127.0.0.1:9091/housing/search?keyWord=整租&page=1{"totalPage": 21,"list": [{"id": "XzbLWXkBRTe_j_yGmSm3","title": " 整租·中正·锦城 1室0厅 南 ","rent": "1200","floor": "低楼层/18层","pic": "TY2744161905324064768_0.jpg,TY2744161905324064768_1.jpg,TY2744161905324064768_2.jpg,TY2744161905324064768_3.jpg","orientation": "30㎡","houseType": "房屋类型：1室0厅1卫","rentMethod": "租赁方式：整租","time": "需提前预约"},{"id": "HKzLWXkBbSHXsITPqKGk","title": " 整租·华润大厦 1室1厅 北 ","rent": "1500","floor": "中楼层/30层","pic": "","orientation": "43㎡","houseType": "房屋类型：1室1厅1卫","rentMethod": "租赁方式：整租","time": "需提前预约"},{"id": "gzbLWXkBRTe_j_yGmSm3","title": " 整租·大马新村 2室1厅 南 ","rent": "1700","floor": "中楼层/6层","pic": "TY2765003811390234624_0.jpg,TY2765003811390234624_1.jpg,TY2765003811390234624_2.jpg,TY2765003811390234624_3.jpg,TY2765003811390234624_4.jpg","orientation": "40㎡","houseType": "房屋类型：2室1厅1卫","rentMethod": "租赁方式：整租","time": "需提前预约"},{"id": "C6zLWXkBbSHXsITPqKGk","title": " 整租·王村小区 1室1厅 南 ","rent": "1980","floor": "高楼层/12层","pic": "TY2779698262129508352_0.jpg,TY2779698262129508352_1.jpg,TY2779698262129508352_2.jpg,TY2779698262129508352_3.jpg","orientation": "45㎡","houseType": "房屋类型：1室1厅1卫","rentMethod": "租赁方式：整租","time": "需提前预约"},{"id": "fjbLWXkBRTe_j_yGmSm3","title": " 整租·景观新贵 2室1厅 东 ","rent": "2000","floor": "中楼层/18层","pic": "TY2777610759704674304_0.jpg,TY2777610759704674304_1.jpg,TY2777610759704674304_2.jpg,TY2777610759704674304_3.jpg,TY2777610759704674304_4.jpg","orientation": "98㎡","houseType": "房屋类型：2室1厅1卫","rentMethod": "租赁方式：整租","time": "需提前预约"},{"id": "ZKzLWXkBbSHXsITPqKGk","title": " 整租·国际公寓 1室1厅 南 ","rent": "1700","floor": "低楼层/19层","pic": "TY2762195172271341568_0.jpg,TY2762195172271341568_1.jpg,TY2762195172271341568_2.jpg,TY2762195172271341568_3.jpg,TY2762195172271341568_4.jpg,TY2762195172271341568_5.jpg","orientation": "67㎡","houseType": "房屋类型：1室1厅1卫","rentMethod": "租赁方式：整租","time": "需提前预约"},{"id": "7lrLWXkB95epjtTKoTab","title": " 整租·文锦世家 2室0厅 南 ","rent": "2200","floor": "高楼层/28层","pic": "","orientation": "75㎡","houseType": "房屋类型：2室0厅1卫","rentMethod": "租赁方式：整租","time": "需提前预约"},{"id": "bDbLWXkBRTe_j_yGmSm3","title": " 整租·佳地花园 2室1厅 南 ","rent": "1600","floor": "低楼层/6层","pic": "TY2762299531344486400_0.jpg,TY2762299531344486400_1.jpg,TY2762299531344486400_2.jpg,TY2762299531344486400_3.jpg,TY2762299531344486400_4.jpg","orientation": "58㎡","houseType": "房屋类型：2室1厅1卫","rentMethod": "租赁方式：整租","time": "需提前预约"},{"id": "ijbLWXkBRTe_j_yGmSm3","title": " 整租·汾河景观360 1室0厅 北 ","rent": "1500","floor": "高楼层/33层","pic": "TY2778104741962448896_0.jpg,TY2778104741962448896_1.jpg,TY2778104741962448896_2.jpg,TY2778104741962448896_3.jpg","orientation": "30㎡","houseType": "房屋类型：1室0厅1卫","rentMethod": "租赁方式：整租","time": "需提前预约"},{"id": "wFrLWXkB95epjtTKoTab","title": " 整租·富力湾 3室2厅 南 ","rent": "3000","floor": "中楼层/34层","pic": "TY2565750322844663808_0.jpg,TY2565750322844663808_1.jpg,TY2565750322844663808_2.jpg,TY2565750322844663808_3.jpg,TY2565750322844663808_4.jpg,TY2565750322844663808_5.jpg,TY2565750322844663808_6.jpg,TY2565750322844663808_7.jpg","orientation": "120㎡","houseType": "房屋类型：3室2厅2卫","rentMethod": "租赁方式：整租","time": "需提前预约"}]
}

房源搜索整合前端

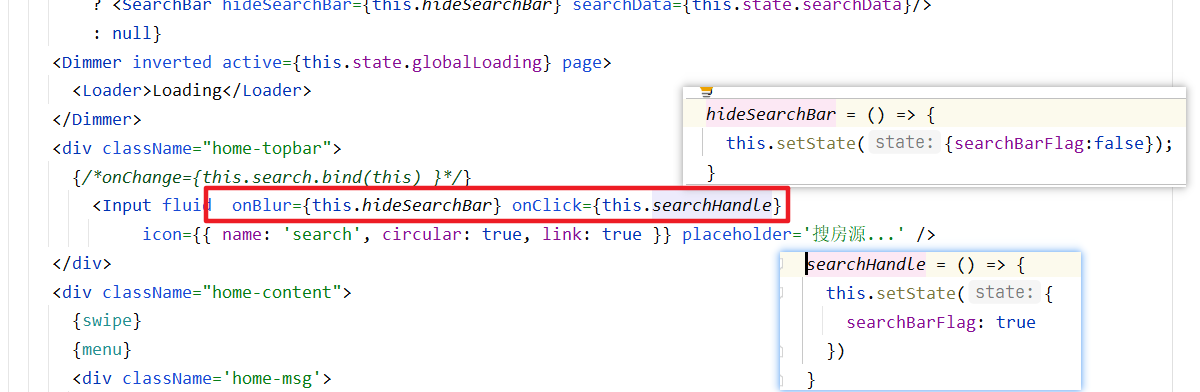

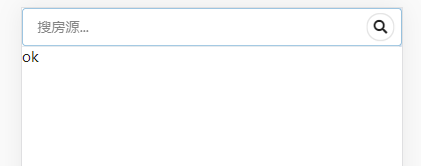

流程：

  • 输入框聚焦，this.state/searchBarFlag = true ，则显示 SearchBar

  • 输入框失焦，this.state/searchBarFlag = false ，则隐藏 SearchBar

【Java项目】好客租房——前台分析

【Java项目】好客租房——前台分析

home.js
class Home extends React.Component {componentDidMount = () => {...Promise.all([swipe, menu, info, faq, house]).then((result)=>{this.setState({swipeData: result[0],menuData: result[1],infoData: result[2],faqData: result[3],houseData: result[4],menuLoading: true,swipeLoading: true,infoLoading: true,faqLoading: true,houseLoading: true,globalLoading: false,searchBarFlag:false,searchData:[]})})}hideSearchBar = () => {this.setState({searchBarFlag:false});}searchHandle = () => {this.setState({searchBarFlag: true})}search = (event, data) =>{let value = data.value;let _this =this;_this.searchHandle();axios.get('http://127.0.0.1:9091/housing/search?keyWord='+value+'&page=1').then((data)=>{console.log(data)if(data.list.length != 0)_this.setState({searchData:data.list});else_this.setState({searchData:[]});});}render() {...return (<div className='home-container'>{this.state.mapShowFlag?<MapHouse hideMap={this.hideMap}/>:null}{this.state.calcShowFlag?<Calculator hideCalc={this.hideCalc}/>:null}{this.state.searchBarFlag? <SearchBar hideSearchBar={this.hideSearchBar} searchData={this.state.searchData}/>: null}<div className="home-topbar">{/*onChange={this.search.bind(this) }*/}{/*onBlur={this.hideSearchBar} onClick={this.searchHandle}*/}<Input fluid onChange={this.search.bind(this) } icon={{ name: 'search', circular: true, link: true }} placeholder='搜房源...' /></div></div>...);}
}
export default withRouter(Home);
home.css
···
.search-bar {position: fixed;bottom: 50px;top: 38px;z-index: 9999;height: 100%;width: 100%;background-color: #fff;overflow-y: auto; /这里做了修改，y轴方向有滚动条/
}
···
SearchBar.js
import React from 'react';
// import { Icon} from 'semantic-ui-react'
import { Icon,Item } from 'semantic-ui-react';
import "./search.css";class SearchBar extends React.Component {hideSearchBar = () => {this.props.hideSearchBar();}render() {return (<div className = 'search-bar' ><Icon onClick={this.hideSearchBar} name = 'angle left' size = 'large'/><div className = "search-bar-content"><Item.Group divided unstackable>{this.props.searchData.map(item => {return (<Item key={item.id}><Item.Imagesrc={"https://haoke-1257323542.cos.ap-beijing.myqcloud.com/tylj-images/"+ item.pic.split(",")[0]}/><Item.Content><Item.Header><div className='house-title'>{item.title}</div></Item.Header><Item.Meta><span className='cinema'>
{item.orientation}/{item.rentMethod}/{item.houseType}</span></Item.Meta><Item.Description>上海</Item.Description><Item.Description>{item.rent}</Item.Description></Item.Content></Item>)})}</Item.Group></div></div>);}
}export default SearchBar;
search.css
.house-title{overflow: hidden;white-space: nowrap;
}

房源搜索——高亮

【Java项目】好客租房——前台分析
【Java项目】好客租房——前台分析
【Java项目】好客租房——前台分析

后台实现

package com.haoke.api.service;import com.haoke.api.vo.ESSearchResult;
import com.haoke.api.vo.es.HouseData;
import org.apache.commons.lang3.reflect.FieldUtils;
import org.elasticsearch.action.search.SearchResponse;
import org.elasticsearch.common.text.Text;
import org.elasticsearch.index.query.Operator;
import org.elasticsearch.index.query.QueryBuilders;
import org.elasticsearch.search.SearchHit;
import org.elasticsearch.search.SearchHits;
import org.elasticsearch.search.fetch.subphase.highlight.HighlightBuilder;
import org.elasticsearch.search.fetch.subphase.highlight.HighlightField;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cglib.core.ReflectUtils;
import org.springframework.data.domain.PageRequest;
import org.springframework.data.domain.Pageable;
import org.springframework.data.elasticsearch.core.ElasticsearchTemplate;
import org.springframework.data.elasticsearch.core.SearchResultMapper;
import org.springframework.data.elasticsearch.core.aggregation.AggregatedPage;
import org.springframework.data.elasticsearch.core.aggregation.impl.AggregatedPageImpl;
import org.springframework.data.elasticsearch.core.query.NativeSearchQuery;
import org.springframework.data.elasticsearch.core.query.NativeSearchQueryBuilder;
import org.springframework.data.elasticsearch.core.query.SearchQuery;
import org.springframework.stereotype.Service;import java.lang.reflect.Field;
import java.util.ArrayList;
import java.util.Collections;
import java.util.List;
import java.util.Map;@Service
public class ESSearchService {@Autowiredprivate ElasticsearchTemplate elasticsearchTemplate;public static final Integer ROWS = 10;public ESSearchResult search(String keyword, Integer page) {PageRequest pageRequest = PageRequest.of(page-1,ROWS);SearchQuery searchQuery = new NativeSearchQueryBuilder().withQuery(QueryBuilders.matchQuery("title",keyword).operator(Operator.AND)).withPageable(pageRequest).withHighlightFields(new HighlightBuilder.Field("title")).build();/ 高亮显示，需要指定属性映射，此时不会进行自动映射，所有的属性都必须手动因难割舍* */AggregatedPage<HouseData> houseData = this.elasticsearchTemplate.queryForPage(searchQuery, HouseData.class,new SearchResultMapper() {/ searchResponse : 返回结果* aClass         : ES类型* pageable       : 分页信息* */@Overridepublic <T> AggregatedPage<T> mapResults(SearchResponse searchResponse, Class<T> aClass, Pageable pageable) {//返回结果List<T> result = new ArrayList<>();//返回空结果if(searchResponse.getHits().totalHits==0){return new AggregatedPageImpl<>(Collections.emptyList(),pageable,0L);}//查询结果不为空for (SearchHit hit : searchResponse.getHits()) {//对每个结果进行处理//通过反射机制，创建ORM的java对象T obj = (T) ReflectUtils.newInstance(aClass);try {//将 id 写入FieldUtils.writeField(obj,"id",hit.getId(),true);} catch (IllegalAccessException e) {e.printStackTrace();}/ ES数据* {"_index": "haoke","_type": "house","_id": "XjbLWXkBRTe_j_yGmSm3","_version": 1,"_score": 1,"_source": {"pic": "TY2760703226025353216_0.jpg,TY2760703226025353216_1.jpg,TY2760703226025353216_2.jpg,TY2760703226025353216_3.jpg,TY2760703226025353216_4.jpg","orientation": "30㎡","houseType": "房屋类型：4室0厅2卫","rentMethod": "租赁方式：合租","time": "随时可看","title": " 合租·翰府 4居室 西卧 ","rent": "800","floor": "4/25层","url": "https://ty.lianjia.com/zufang/TY2760703226025353216.html"}}* */Map<String ,Object> sourceAsMap = hit.getSourceAsMap();for (Map.Entry<String, Object> entry : sourceAsMap.entrySet()) {//对每个键值对进行映射if(null == FieldUtils.getField(aClass, entry.getKey(), true)){continue;}//向 obj 中写入键值对try {FieldUtils.writeField(obj, entry.getKey(), entry.getValue(),true);} catch (IllegalAccessException e) {e.printStackTrace();}}//处理高亮字段 覆盖for (Map.Entry<String, HighlightField> stringHighlightFieldEntry : hit.getHighlightFields().entrySet()) {Text[] fragments = stringHighlightFieldEntry.getValue().fragments();StringBuilder sb = new StringBuilder();for (Text fragment : fragments) {sb.append(fragment.toString());}try {FieldUtils.writeField(obj,stringHighlightFieldEntry.getKey(),sb.toString(),true);} catch (IllegalAccessException e) {e.printStackTrace();}}result.add(obj);}return new AggregatedPageImpl<>(result,pageable, searchResponse.getHits().totalHits);}});return new ESSearchResult(houseData.getTotalPages(),houseData.getContent());}
}

{"totalPage": 21,"list": [{"id": "XzbLWXkBRTe_j_yGmSm3","title": "<em>整</em><em>租</em>·中正·锦城 1室0厅 南","rent": "1200","floor": "低楼层/18层","pic": "TY2744161905324064768_0.jpg,TY2744161905324064768_1.jpg,TY2744161905324064768_2.jpg,TY2744161905324064768_3.jpg","orientation": "30㎡","houseType": "房屋类型：1室0厅1卫","rentMethod": "租赁方式：整租","time": "需提前预约"}...]
}

整合前端

<Item.Header><div className='house-title' dangerouslySetInnerHTML=
{{__html:item.title}}></div></Item.Header>.house-title em{font-style: normal;color: red;
}

【Java项目】好客租房——前台分析

房源搜索——分页

分页组件

import { Icon,Item,Pagination } from 'semantic-ui-react';

searchBar.js

handlePageChange = (e, { activePage }) =>{this.props.searchPage(null,{page:activePage});
}render() {return ({this.props.totalPage > 1?(<PaginationdefaultActivePage={1}firstItem={null}lastItem={null}totalPages={this.props.totalPage}onPageChange={this.handlePageChange}/>):null)
}

home.js

search = (event, data) =>{let value = data.value ? data.value : this.state.searchKeyWord;let _this =this;let page = data.page ? data.page: 1;_this.searchHandle();axios.get('http://127.0.0.1:9091/housing/search?keyWord='+value+'&page='+page).then((data)=>{if(data.list.length != 0)_this.setState({searchData:data.list});else_this.setState({searchData:[]});_this.setState({totalPage:data.totalPage,searchKeyWord: value})});
}{this.state.searchBarFlag? <SearchBar hideSearchBar={this.hideSearchBar} searchPage={this.search} searchData={this.state.searchData} totalPage={this.state.totalPage} />: null}

房源搜索——热词搜索

需求：当无搜索结果或搜索结果只有一页时，显示搜索热词，最多显示5个热词

热词：按照用户搜索的关键字以及搜索到的结果数量进行排序，结果数量越多的排到越前面

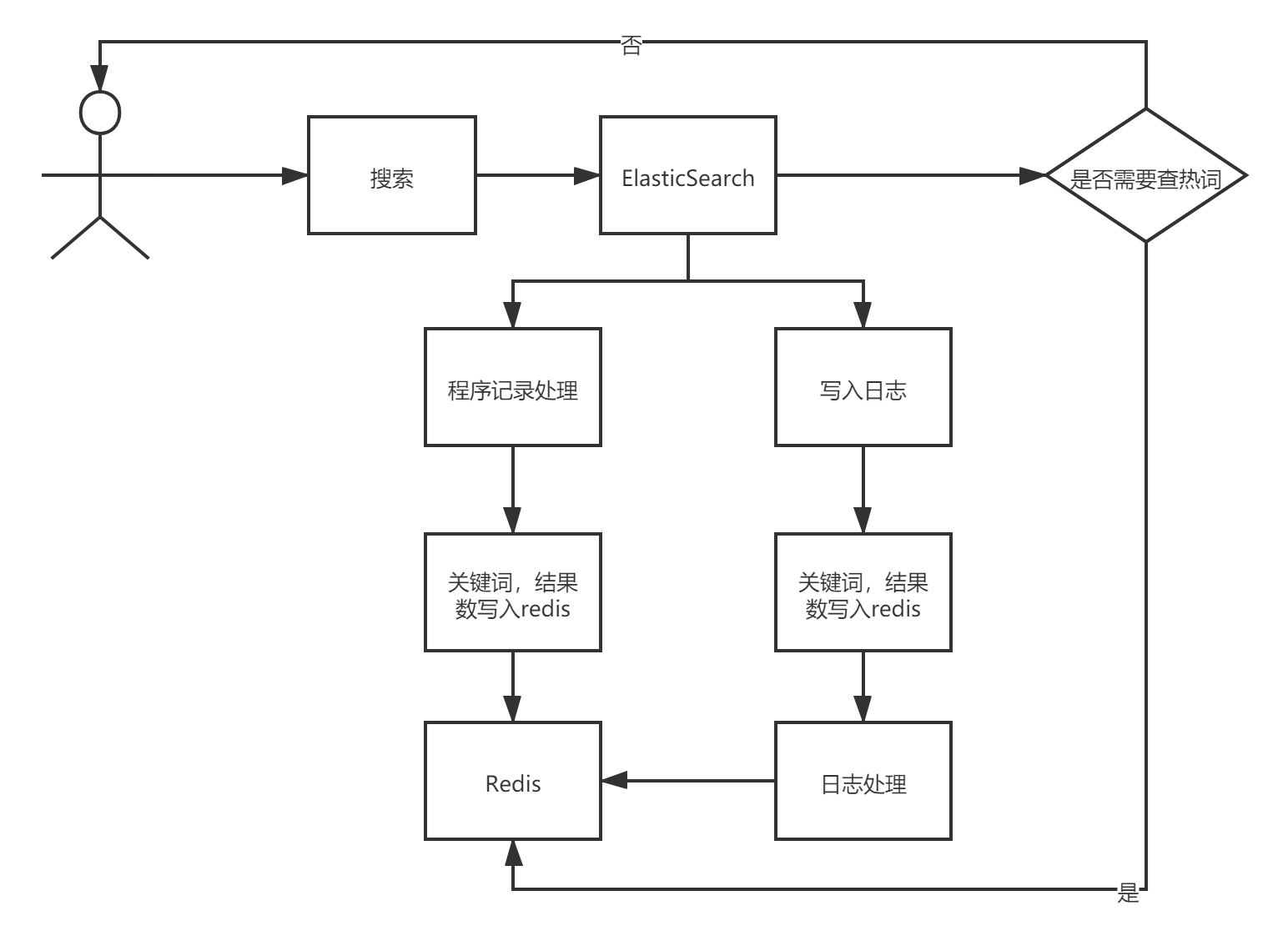

实现分析

【Java项目】好客租房——前台分析

  1. 用户搜索数据，首先进行ES搜索

  2. 在搜索完成后，进行判断，是否需要显示热词

    • 如果不需要，直接返回用户请求的数据

    • 如果需要，则进行在 Redis 中查询热词

  3. 对于用户搜索词的处理有两种方案

    • 同步方案：在程序中进行处理，并且把搜索词以及命中的数据数量存到 Redis 中
    • 异步方案：将查询信息记录到日志文件中，由后续的程序做处理，然后再写入到Redis中

后台

package com.haoke.api.controller;import com.alibaba.dubbo.common.logger.Logger;
import com.alibaba.dubbo.common.logger.LoggerFactory;
import com.haoke.api.service.ESSearchService;
import com.haoke.api.vo.ESSearchResult;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.*;import java.util.Set;@RequestMapping("housing/search")
@RestController
@CrossOrigin
public class ESController {@Autowiredprivate ESSearchService esSearchService;@Autowiredprivate RedisTemplate redisTemplate;private static final Logger LOGGER = LoggerFactory.getLogger(ESController.class);@GetMappingpublic ESSearchResult search(@RequestParam("keyWord") String keyWord,@RequestParam(value = "page", defaultValue = "1") Integer page){if(page > 100){page = 1;//防止爬取过多数据}ESSearchResult search = this.esSearchService.search(keyWord, page);String redisKey = "HAOKE_HOT_WORD";if(search.getTotalPage() <= 1){//需要查询热词，按照得分，获取前5条Set<String> set = this.redisTemplate.opsForZSet().reverseRange(redisKey,0,4);search.setHotWord(set);}//处理热词Integer count = (Math.max(search.getTotalPage(),1) - 1)*esSearchService.ROWS +search.getList().size();//采用zset方式进行存储。值是的数量计算的得分this.redisTemplate.opsForZSet().add(redisKey,keyWord,count);LOGGER.info("[Search]搜索关键字为：" + keyWord + "，结果数量为：" + count);return search;}
}

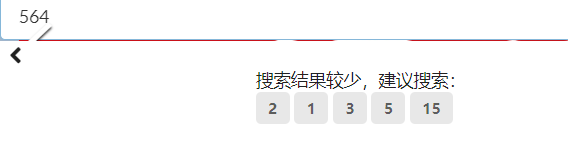

前台

# search.js
handleHotSearch = (e,data) =>{this.props.searchPage(null,{value:data.children});
}{this.props.hotWord ? (<Container>搜索结果较少，建议搜索：<br/><span>{this.props.hotWord.map(item => {return (<Label onClick={this.handleHotSearch}>{item}</Label>)})}</span></Container>): null
}# home.js
hideSearchBar = () => {this.setState({searchBarFlag:false,searchKeyWord:""});
}
search = (event, data) =>{let value = data.value ? data.value : this.state.searchKeyWord;let _this =this;let page = data.page ? data.page: 1;this.setState({searchKeyWord:value});_this.searchHandle();axios.get('http://127.0.0.1:9091/housing/search?keyWord='+value+'&page='+page).then((data)=>{if(data.list.length != 0)_this.setState({searchData:data.list});else_this.setState({searchData:[]});_this.setState({totalPage:data.totalPage,hotWord: data.hotWord})});
}
searchHandle = () => {this.setState({searchBarFlag: true})
}{this.state.searchBarFlag? <SearchBar hideSearchBar={this.hideSearchBar} hotWord={this.state.hotWord}  searchPage={this.search}searchData={this.state.searchData} totalPage={this.state.totalPage} />: null}<div className="home-topbar">{/*onChange={this.search.bind(this) }*/}{/*onBlur={this.hideSearchBar} onClick={this.searchHandle}*/}<Input fluid onChange={this.search.bind(this) } value={this.state.searchKeyWord}icon={{ name: 'search', circular: true, link: true ,}} placeholder='搜房源...' />
</div>

【Java项目】好客租房——前台分析

【Java项目】好客租房——前台分析

房源搜索——拼音搜索

ES拼音插件地址：https://github.com/medcl/elasticsearch-analysis-pinyin

1. ES集群引入拼音插件

#将zip压缩包，解压到/data/es-cluster-data/pinyin
unzip elasticsearch-analysis-pinyin-6.5.4.zip#重新创建容器
docker stop es-node01 es-node02 es-node03
docker rm es-node01 es-node02 es-node03# 重新创建容器，挂在ik目录
docker create --name es-node01 --net host -v /data/es-cluster-data/node01/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml -v /data/es-cluster-data/node01/jvm.options:/usr/share/elasticsearch/config/jvm.options  -v /data/es-cluster-data/node01/data:/usr/share/elasticsearch/data -v /data/es-cluster-data/ik:/usr/share/elasticsearch/plugins/ik -v /data/es-cluster-data/pinyin:/usr/share/elasticsearch/plugins/pinyin elasticsearch:6.5.4docker create --name es-node02 --net host -v /data/es-cluster-data/node02/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml -v /data/es-cluster-data/node02/jvm.options:/usr/share/elasticsearch/config/jvm.options -v /data/es-cluster-data/node02/data:/usr/share/elasticsearch/data -v /data/es-cluster-data/ik:/usr/share/elasticsearch/plugins/ik -v /data/es-cluster-data/pinyin:/usr/share/elasticsearch/plugins/pinyin elasticsearch:6.5.4docker create --name es-node03 --net host -v /data/es-cluster-data/node03/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml -v /data/es-cluster-data/node03/jvm.options:/usr/share/elasticsearch/config/jvm.options -v /data/es-cluster-data/node03/data:/usr/share/elasticsearch/data -v /data/es-cluster-data/ik:/usr/share/elasticsearch/plugins/ik -v /data/es-cluster-data/pinyin:/usr/share/elasticsearch/plugins/pinyin elasticsearch:6.5.4

2. 测试拼音分词

PUT /medcl/{"index": {# 新建索引"analysis": {# 指定分词器"analyzer": {"pinyin_analyzer": {"tokenizer": "my_pinyin"}},"tokenizer": {# 分词器限制"my_pinyin": {"type": "pinyin","keep_separate_first_letter": false,"keep_full_pinyin": true,"keep_original": true,"limit_first_letter_length": 16,"keep_first_letter":true,# 词汇拼音首字母搜索"lowercase": true,"remove_duplicated_term": true}}}}
}

测试分词

GET /medcl/_analyze{"text": ["刘德华"],"analyzer": "pinyin_analyzer"
}{"tokens": [{"token": "liu","start_offset": 0,"end_offset": 0,"type": "word","position": 0},{"token": "刘德华","start_offset": 0,"end_offset": 0,"type": "word","position": 0},{"token": "ldh","start_offset": 0,"end_offset": 0,"type": "word","position": 0},{"token": "de","start_offset": 0,"end_offset": 0,"type": "word","position": 1},{"token": "hua","start_offset": 0,"end_offset": 0,"type": "word","position": 2}]
}

3. 添加拼音分词支持

POST /medcl/folks/_mapping{"folks": {"properties": {"name": {"type": "keyword","fields": {"pinyin": {"type": "text","store": false,"term_vector": "with_offsets","analyzer": "pinyin_analyzer","boost": 10}}}}}
}

这里使用的是name的子字段，通过fields指定

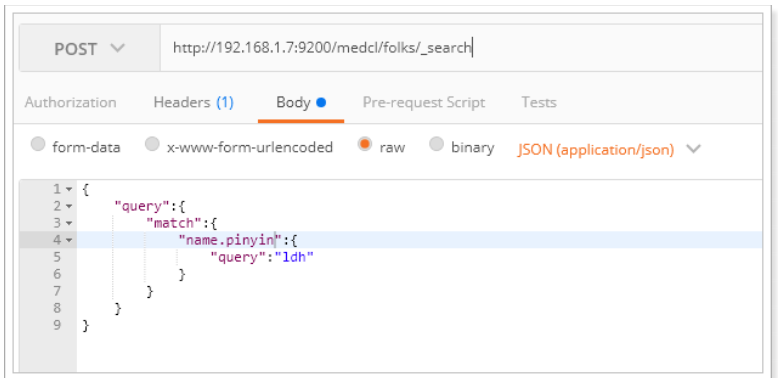

插入数据

POST /medcl/folks/andy
{"name":"刘德华"}

【Java项目】好客租房——前台分析

【Java项目】好客租房——前台分析

4. haoke索引添加拼音支持

PUT http://8.140.130.91:9200/haoke/{"settings": {"index": {"number_of_shards": 6,"number_of_replicas": 1,"analysis": {#配置拼音分词器"analyzer": {"pinyin_analyzer": {"tokenizer": "my_pinyin"}},"tokenizer": {"my_pinyin": {"type": "pinyin","keep_separate_first_letter": false,"keep_full_pinyin": true,"keep_original": true,"limit_first_letter_length": 16,"lowercase": true,"remove_duplicated_term": true}}}}},"mappings": {"house": {"dynamic": false,"properties": {"title": {"type": "text","analyzer": "ik_max_word","fields": {"pinyin": {# 子属性"type": "text","analyzer": "pinyin_analyzer"}}},"image": {"type": "keyword","index": false},"orientation": {"type": "keyword","index": false},"houseType": {"type": "keyword","index": false},"rentMethod": {"type": "keyword","index": false},"time": {"type": "keyword","index": false},"rent": {"type": "keyword","index": false},"floor": {"type": "keyword","index": false}}}}
}

测试

POST http://8.140.130.91:9200/haoke/house/_search{"query": {"multi_match": {"query": "地铁kou","fields": ["title", "title.pinyin"]}},"highlight": {"fields": {"title.pinyin": {},"title": {}}}
}

【Java项目】好客租房——前台分析

5. 修改ESControler查询逻辑

SearchQuery searchQuery = new NativeSearchQueryBuilder().withQuery(QueryBuilders.multiMatchQuery(keyWord, "title","title.pinyin").operator(Operator.AND)) // multiMatch 批量查询.withPageable(pageRequest).withHighlightFields(new HighlightBuilder.Field("title")) // 设置高亮
.build();
网络标签：

相关问题
